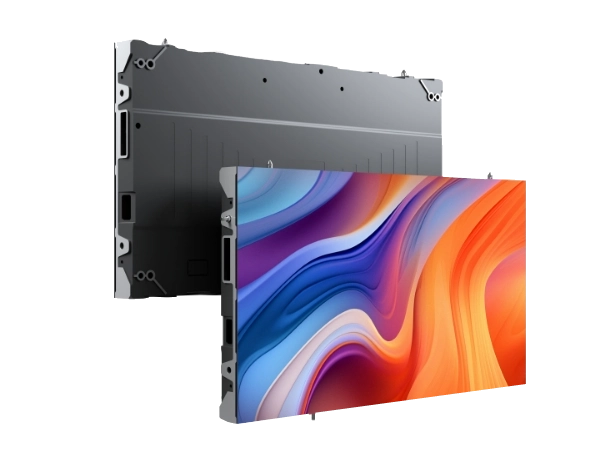

SN169 Series
Indoor Fine Pitch LED Display
- Pixel Pitch: P0.78, P0.93, P1.25, P1.56
- Cabinet Size (mm): 600×337.5
- Weight (kg): ≈4–5
- Brightness (nits): 600–900
- Refresh Frequency: ≥3840
- Viewing angle: H 170° / V 170°
- Contrast Ratio: 3000–10,000:1
Features of our
Indoor Fine Pitch LED Display
SN169 Series- Cable‑Free Design
- Flip‑Chip COB Technology
- Integrated Encapsulation
- Fanless Design
- Common Cathode Driving (Optional)
- Full Front Maintenance
- Real‑Time Dynamic Image Processing
- Moiré‑Free Design

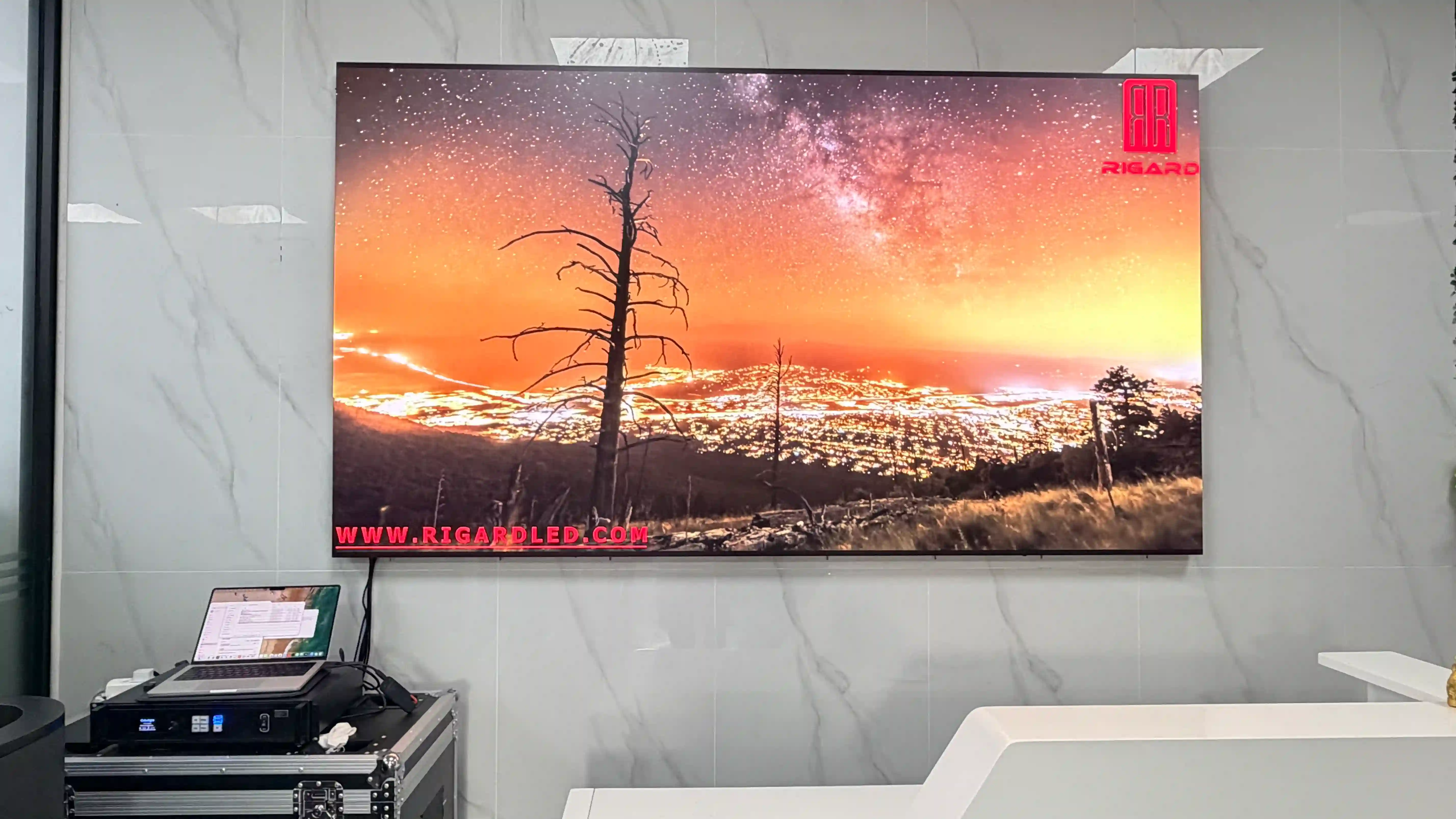

Customer Real Projects
Show More Images
Show More Images
Show More Images
Show More Images
Show More Images
Advanced Flip-Chip COB LED Display Series
Engineered for high-precision environments, Flip-Chip COB LED Display Series (P0.78–P1.56) features industrial-grade reliability, fanless silent cooling and full front-access maintenance, delivering high-definition visual performance for command centers, boardrooms, and broadcast studios.
Main Product Features
1. Cable‑Free Design: Modules connect through built‑in hard contacts with no exposed signal or power cables, delivering a neat appearance, faster assembly and higher reliability.
LED Displays: Core Advantages of Cable-Free Design
2. Flip‑Chip COB Technology: It provides excellent heat dissipation, up to 40% lower power consumption than traditional SMD, and a lower dead‑lamp rate, with no gold‑wire bonding and no surface‑mounted LED package structure.
Indoor LED Displays: Flip-Chip COB Process, the Core Packaging Technology of High-End LED Panels
3. Integrated Encapsulation: Dust‑proof, moisture‑proof, splash‑proof, anti‑static and impact‑resistant; bumps rarely cause pixel loss, and the surface can be cleaned directly with a damp cloth.
4. Fanless Design: 0dB silent heat dissipation with no operating noise.
5. Common Cathode Driving (Optional): Compared with traditional common‑anode solutions, power consumption is reduced by 30%–50%; lower heat generation cuts air‑conditioning load and carbon emissions, avoids local hot spots and ensures stable long‑term operation.
Indoor LED Displays: Common-Cathode Technology Reduces Heat and Saves Electricity at the Source
6. Full Front Maintenance: Modules, power supplies and receiving cards all support front servicing with a dedicated suction tool. No rear service aisle is required and the screen can be mounted directly against the wall, saving indoor space and reducing steel‑structure material and construction labor costs.
7. Real‑Time Dynamic Image Processing: Highlights and shadows are precisely adjusted to suppress overexposure and preserve image detail, while screen brightness is dynamically and adaptively tuned to restore material textures and color gradations.
8. Moiré‑Free Design: Optical surface treatment eliminates scan lines and moiré during recording and live streaming, adapting to 4K camera live‑broadcast scenarios.
LED Displays: Anti-Moiré Surface Treatment, Enabling Professional Filming Experience on LED Screens
Engineered for Precision: Advanced Flip-Chip COB LED Display
Engineered for high-precision environments, our Flip-Chip COB LED Display Series (P0.78–P1.56) combines ultra-fine pixel pitch clarity with industrial-grade reliability. Powered by advanced Flip-Chip COB technology, it delivers superior energy efficiency, excellent heat dissipation, and a 170° wide viewing angle with zero color shift. Featuring a 0dB fanless silent cooling design and 100% complete front-access maintenance, it provides an effortless, noise-free, and high-definition visual solution ideal for command centers, boardrooms, and broadcast studios.
COB Surface: Advanced COB Surface Durability
Unlike conventional SMD LEDs that are vulnerable to accidental knocks, our COB encapsulation layer provides a robust, edge-to-edge shield against daily physical impacts and environmental hazards:
IP-Rated Defense: Superior resistance to dust, moisture, and water splashes.
Impact & Collision Proof: Reinforced surface layer prevents pixel damage from physical bumps.
Anti-Static & Low Maintenance: Repels static electricity and wipes clean effortlessly.
Full Front-Access: Maximized Space & Seamless Wall Mounting
Optimize your commercial layout with our 100% front-serviceable LED video wall solution. Engineered for complete front maintenance, all LED modules, power supplies, and control cards can be serviced directly from the front—eliminating the need for a rear maintenance corridor. This zero-clearance design allows for flush, direct wall mounting, maximizing premium room space while significantly reducing steel structure and labor costs.

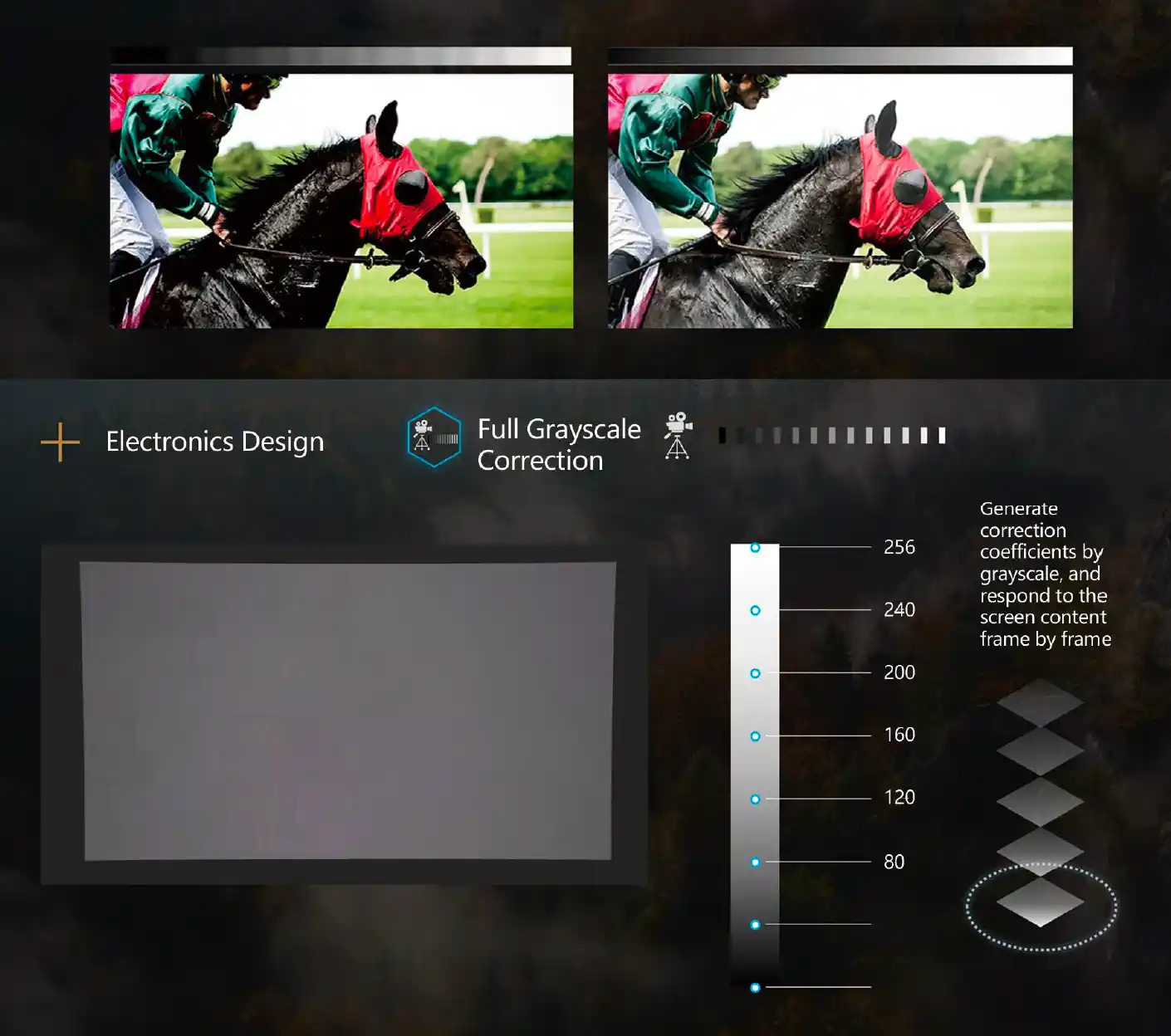

Uncompromised Visual Precision: 16-Bit Grayscale
Engineered for premium indoor display environments, our fine-pitch LED display delivers exceptional image fidelity from every perspective. Powered by advanced 16-bit grayscale processing, the screen retains rich shadow details, smooth color gradients, and true-to-life contrast—even under low-brightness operation. Coupled with an ultra-wide 170° viewing angle, it ensures uniform brightness and zero off-axis color shift across large-scale curved video walls.

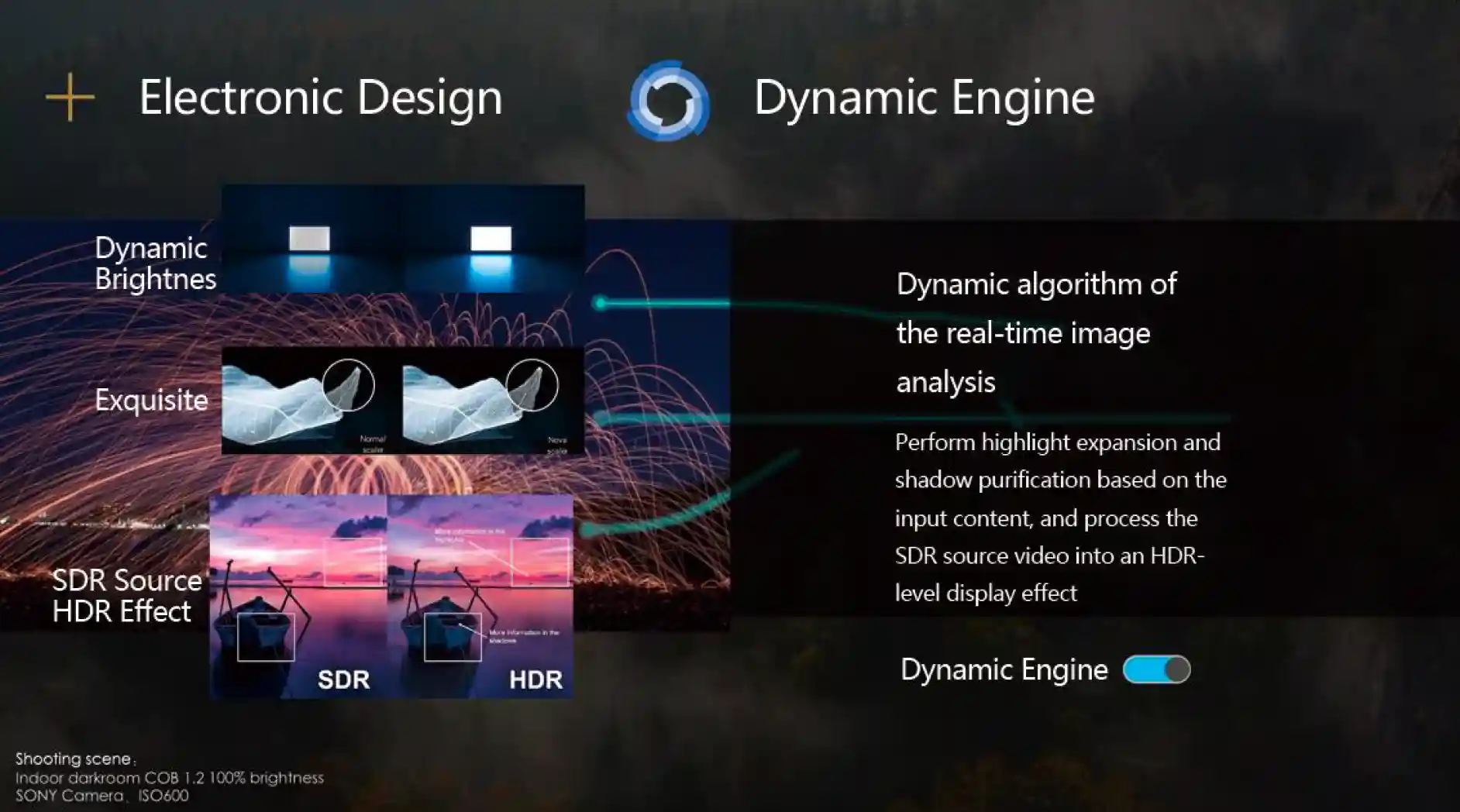

Real-Time Dynamic Engine: Instant SDR-to-HDR Visual Enhancement
Powered by intelligent real-time frame analysis, our Dynamic Engine algorithm automatically optimizes contrast, shadow details, and peak brightness frame by frame.
SDR to HDR Conversion: Instantly elevates standard SDR video feeds into immersive, HDR-grade visual experiences.
Precision Highlight & Shadow Tuning: Expands bright highlights while purifying deep shadows to prevent overexposure and detail loss.
Adaptive Dynamic Brightness: Dynamically balances panel luminance to reveal fine textures and realistic color depth.
Ultra-Wide Viewing Angle: 170° Panoramic Viewing Field with Zero Off-Axis Distortion
Ultimate High-Contrast: Ultimate High-Contrast Display Solution
Comparison between standard and high-contrast solutions. Upgraded brightness, refresh rate, contrast ratio and bit depth deliver stronger dynamic range, crystal-clear visuals and authentic colors for ultimate high-contrast display.
Frequently Asked Questions
Thank you. We will contact you shortly.
Related Videos
Indoor Fine Pitch LED Display
Nov 22, 2025
Indoor Fine Pitch LED Display
Dec 15, 2025
How to Install an Indoor LED Display
Feb 19, 2025
Related Reading
Indoor LED Displays: Flip-Chip COB Process, the Core Packaging Technology of High-End LED Panels
Indoor LED Displays: Common-Cathode Technology Reduces Heat and Saves Electricity at the Source
Indoor LED Displays: The Advantages of a Fully Front-Maintenance Solution
Indoor LED Displays: A Moiré-Free Solution
Indoor LED Displays: A Dedicated Display Solution for Noise-Free Environments
LED Displays: Core Advantages of Cable-Free Design
LED Displays: Anti-Moiré Surface Treatment, Enabling Professional Filming Experience on LED Screens
- Small pixel pitch
- Seamless splicing
- Modular design
- High refresh rate (up to 7680Hz)
- Long lifespan
Specification
Product Specification
| PARAMETER | COB-P0.78 | COB-P0.93 | COB-P1.25 | COB-P1.56 |
|---|---|---|---|---|
| Cabinet Resolution | 768×432 | 640×360 | 480×270 | 384×216 |
| Cabinet Size (mm) | 600×337.5 | 600×337.5 | 600×337.5 | 600×337.5 |
| Weight (kg) | ≈4–5 | ≈4–5 | ≈4–5 | ≈4–5 |
| Brightness (nits) | 600–900 | 600–900 | 600–900 | 600–900 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Viewing angle | H 170° / V 170° | H 170° / V 170° | H 170° / V 170° | H 170° / V 170° |
| Contrast Ratio | 3000–10,000:1 | 3000–10,000:1 | 3000–10,000:1 | 3000–10,000:1 |
| Input voltage | AC 100V/200V±10% | AC 100V/200V±10% | AC 100V/200V±10% | AC 100V/200V±10% |
| Optimal Viewing Distance | 1–2 m | 1.5–2.5 m | 2–3 m | 3–4 m |
