SW1000 Series
Outdoor Advertising LED Screen
- Pixel Pitch: P2.97, P3.91, P6.25, P7.81
- Module Size(mm): 500*250
- Panel Size(mm): 1000*1000*90
- Maintenance Method: Front& Rear
- Refresh Frequency: PWM 3840 Hertz,PWM 7680 Hertz(Optioanl),PWM 15360Hertz(Optioanl)
- Input Voltage(AC): 100-240
- Ingress Protection: IP68
Features of
Outdoor Advertising LED Screen
SW1000 Series- Cable‑Free Design
- Lightweight All‑Aluminum Module Cabinet
- Dual Power & Dual Signal Ports (Optional)
- Fanless Design
- Front & Rear Dual Maintenance
- Common Cathode Driving (Optional)
- IP68 Waterproof & Dustproof Protection
- 90° Corner & Curved Installation
- Cloud‑Based Smart Management
Customer Real Projects
Show More Images
Show More Images
Show More Images
Show More Images
Show More Images
Show More Images
Show More Images

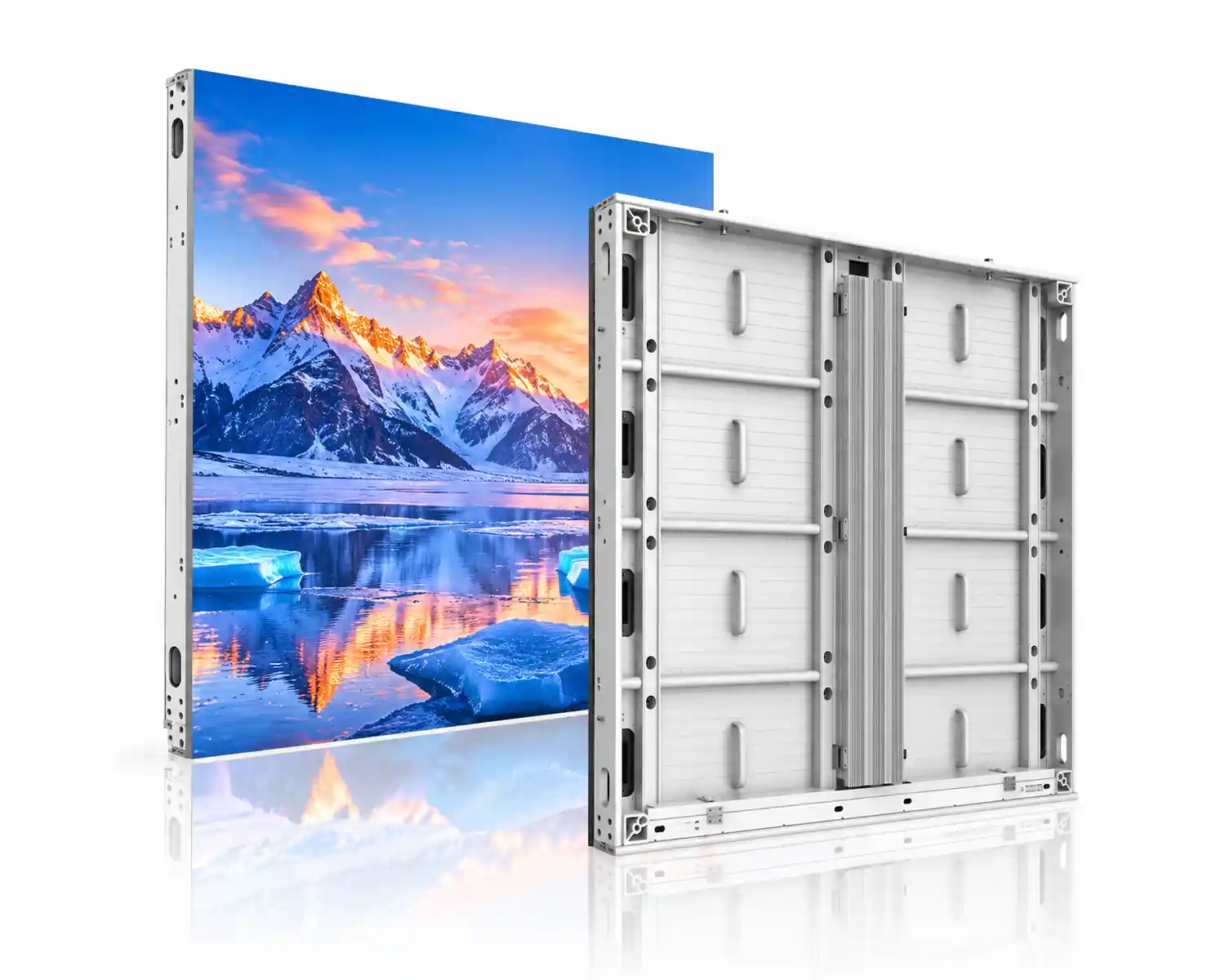

Lightweight Aluminum Outdoor LED Display Cabinet
Built with a high‑precision aluminum alloy frame, this outdoor LED display cabinet features a slim 90 mm profile and a lightweight design of only 29 kg/m². Its modular structure supports multiple sizes and flexible configurations, making transportation and installation easier for outdoor LED advertising, digital billboards, and large‑scale commercial LED display projects.
Main Product Features
1. Cable‑Free Design: Modules connect through built‑in hard contacts with no exposed signal or power cables, delivering a neat appearance, faster assembly and higher reliability.
LED Displays: Core Advantages of Cable-Free Design
2. Lightweight All‑Aluminum Module Cabinet: With a thickness of 90mm and a weight of only 29kg/m², the modular design offers flexible size combinations and convenient transportation and installation.
3. Dual Power & Dual Signal Ports (Optional): Redundant power and signal interfaces back each other up automatically, minimizing downtime and ensuring uninterrupted playback.
4. Fanless Design: Heat is conducted naturally through the large‑area heat dissipation structure of the aluminum module back cover and power box. With no fans, it produces no noise and blocks dust, moisture and debris from entering the cabinet, improving reliability in harsh outdoor environments and extending the screen's service life.
Outdoor LED Displays: Is Fanless Passive Heat Dissipation Reliable?
5. Front & Rear Dual Maintenance: Modules, power supplies and receiving cards can all be serviced from either the front or the rear, adapting to different installation conditions, reducing maintenance space requirements and making servicing simple.
6. Common Cathode Driving (Optional): Compared with traditional common‑anode solutions, power consumption is reduced by 30%–50%; lower heat generation cuts air‑conditioning load and carbon emissions, avoids local hot spots and ensures stable long‑term operation.
Outdoor LED Displays: Common-Cathode Technology Explained
7. IP68 Waterproof & Dustproof Protection: Electronic components are sealed and protected against heavy rain, dust, high humidity and strong wind; the corrosion‑resistant aluminum alloy body ensures stable all‑weather operation.
Outdoor LED Displays: Advantages of the IP68 Protection Rating
8. 90° Corner & Curved Installation: It adapts to building corners and shaped facades, enabling immersive naked‑eye 3D advertising images.
9. Cloud‑Based Smart Management: It supports remote content publishing, scheduling and status monitoring, and allows multiple devices to be managed centrally, suiting multi‑site outdoor advertising network projects.
Dual Power & Signal Ports for Flexible Corner Installation
Featuring a cable‑free design with dual power and signal ports, this outdoor LED display supports interchangeable left and right module connections for cleaner and more flexible installation. The 45° module design enables seamless 90° corner configurations, making it ideal for outdoor LED advertising, corner LED billboards, and creative commercial display projects.

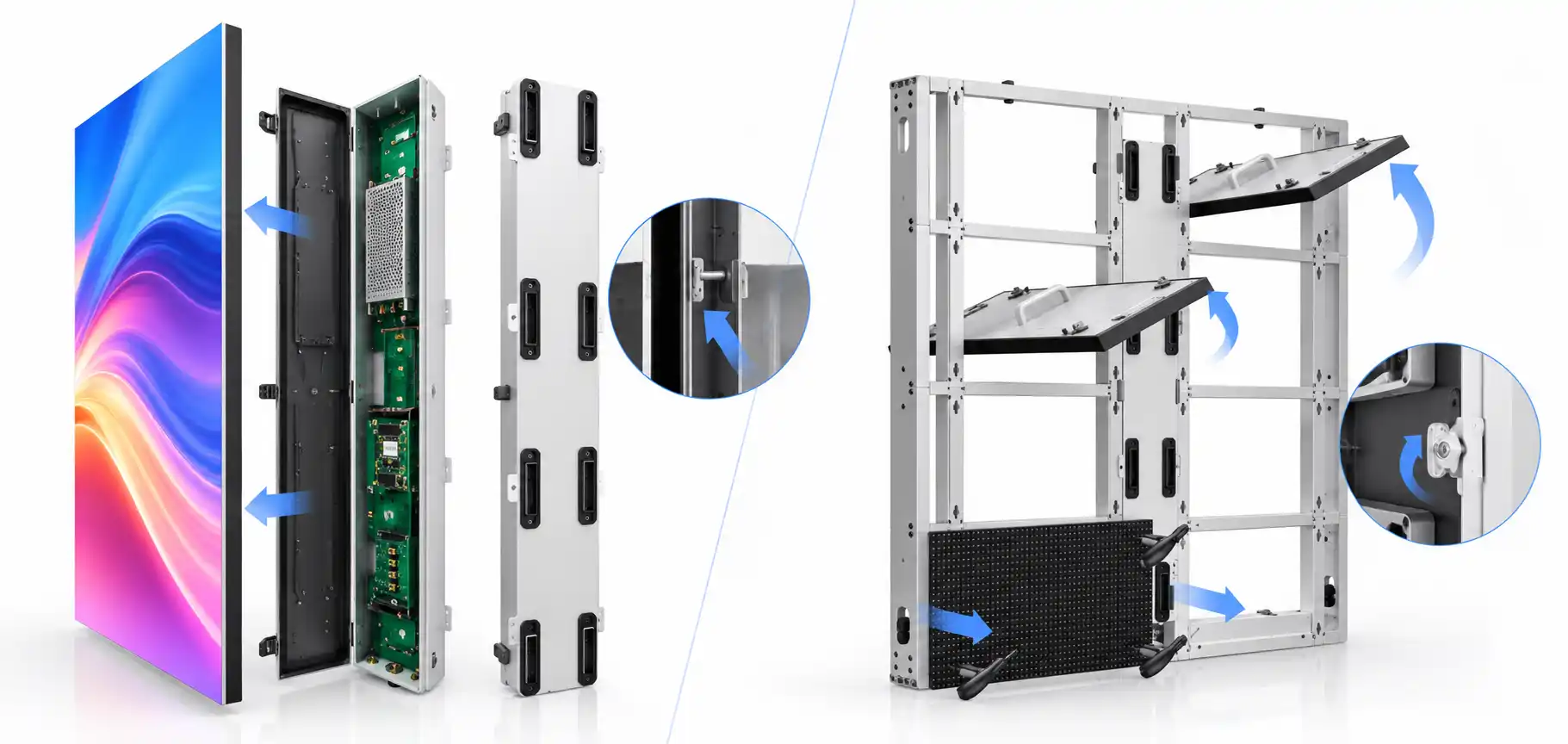

Flexible Front & Rear Maintenance
Engineered with a silent, maintenance‑free passive cooling structure, this fanless outdoor LED display eliminates the need for mechanical cooling fans. By utilizing the aluminum cabinet's advanced thermal conductivity to dissipate heat naturally, it prevents dust, moisture, and debris from entering the interior—ensuring maximum reliability and a longer operational lifespan in harsh outdoor environments.

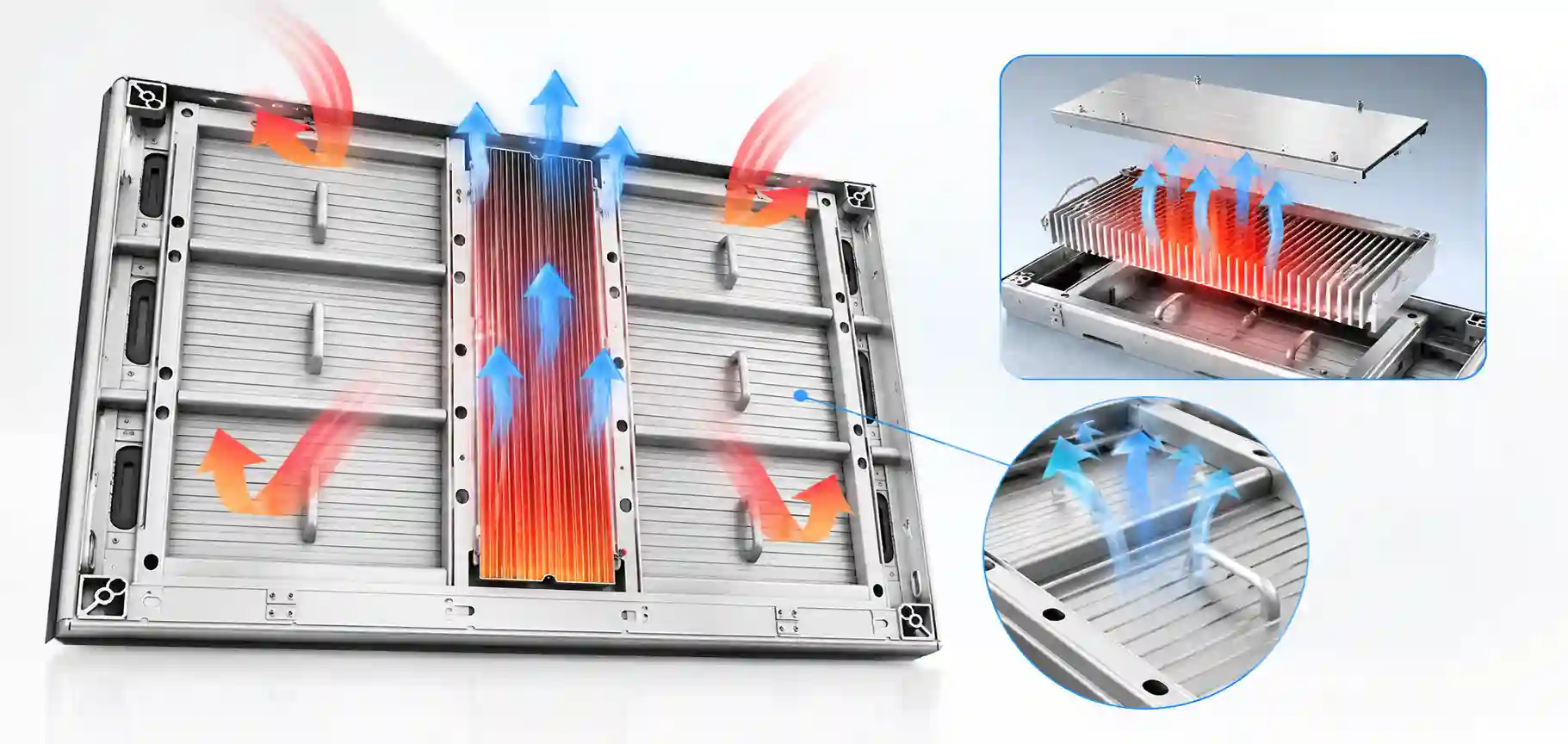

Fanless Aluminum Outdoor LED Display
- Heat Dissipation Advantage: Featuring an aluminum module back cover and a large‑area heat dissipation structure on the power box, this outdoor LED display efficiently transfers heat without additional cooling fans.
- Performance Benefit: The fanless thermal design improves cooling efficiency, reduces power consumption and noise, and ensures stable performance for long‑term outdoor LED advertising and digital billboard applications.

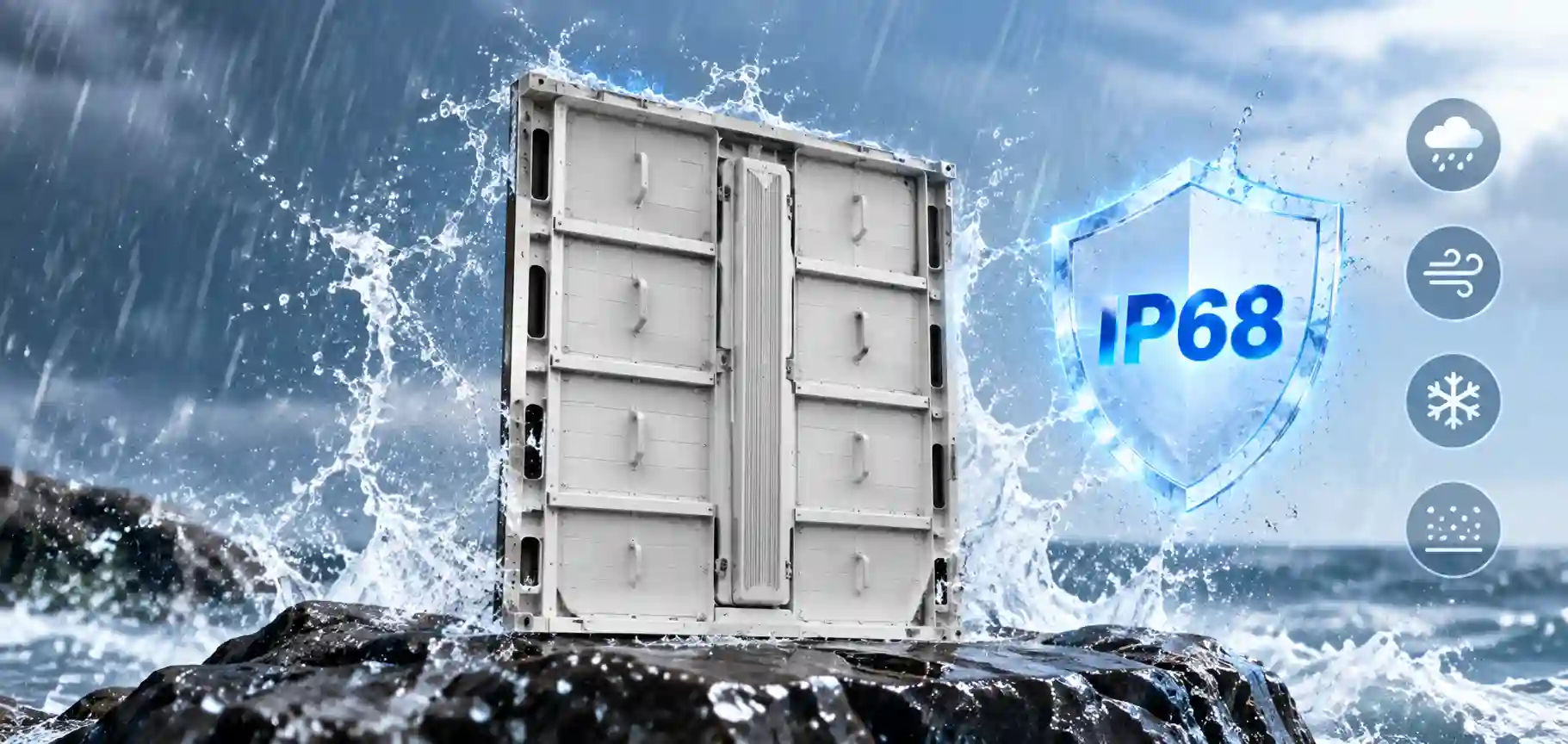

IP68 Waterproof Outdoor LED Display
- Reliable Protection Grade: Engineered with IP68 waterproof and dustproof protection, this outdoor LED display is designed to withstand heavy rain, dust, moisture, strong winds, and other challenging outdoor conditions.
- Stable Operation: Its advanced sealing and protective structure safeguards critical electronic components, ensuring stable and reliable performance for outdoor LED advertising, digital billboards, and long‑term commercial installations.

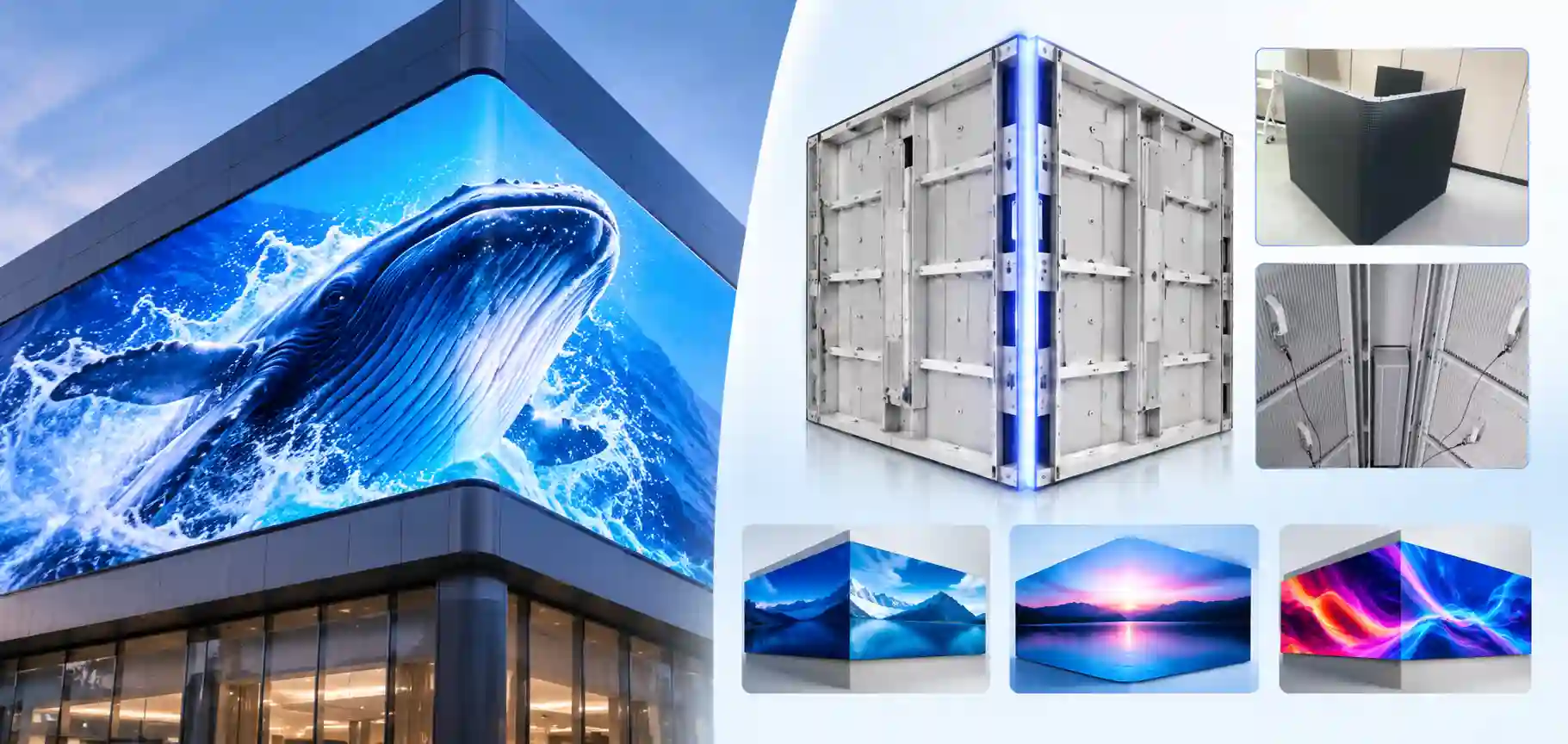

90° Corner for Creative 3D Advertising Installations
Designed for flexible 90‑degree corner and curved installations, this outdoor LED display adapts seamlessly to building corners and various architectural surfaces. The creative splicing design enables large‑format outdoor advertising screens and immersive naked‑eye 3D visual effects, making it ideal for shopping malls, commercial buildings, landmarks, and high‑impact DOOH advertising projects.
Frequently Asked Questions
Thank you. We will contact you shortly.
Related Videos
Outdoor Advertising LED Display Installtion
May 26, 2025
Outdoor Advertising LED Display Installtion
Jun 09, 2025
Outdoor Adverting LED Display Waterproof LED Screen Testing
Feb 27, 2024
Outdoor Adverting LED Display Waterproof LED Screen Testing
Mar 09, 2024
Related Reading
Outdoor LED Displays: 5 Hardware Indicators You Need to Focus On
Outdoor LED Displays: Front & Rear Dual Maintenance, Fitting Diverse Installation Scenarios
Outdoor LED Displays: Advantages of Die-Cast Aluminum Cabinets
LED Displays: Core Principles and Selection Standards for Refresh Rate
LED Displays: Brightness Parameters and Scenario Adaptation Logic
- Dustproof, moisture-proof, rust-proof and corrosion-resistant.
- Ultra-high-definition image output with multiple pixel pitch options.
- A variety of flexible installation methods.
- Durable and reliable with long service life.
Specification
Product Specification
| Pixel Pitch | P2.97 | P3.91 | P6.25 | P7.81 |
|---|---|---|---|---|
| Module Size(mm) | 500*250 | 500*250 | 500*250 | 500*250 |
| Panel Size(mm) | 1000*1000*90 | 1000*1000*90 | 1000*1000*90 | 1000*1000*90 |
| Panel Pixel | 336*336 | 256*256 | 160*160 | 128*128 |
| Pixel Configuration | SMD | SMD | SMD | SMD |
| Soft Mask | NONE | NONE | NONE | NONE |
| Brightness | 5000 cd / ㎡ 8000 cd / ㎡(Optioanl) |
6000 cd / ㎡ 10000 cd / ㎡(Optioanl) |
6000cd / ㎡ 10000 cd / ㎡(Optioanl) |
6000 cd / ㎡ 10000 cd / ㎡(Optioanl) |
| Maintenance Method | Front& Rear | Front& Rear | Front& Rear | Front& Rear |
| Gray Scale | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color |
| Refresh Frequency | PWM 3840 Hertz PWM 7680 Hertz(Optioanl) PWM 15360Hertz(Optioanl) |
PWM 3840 Hertz PWM 7680 Hertz(Optioanl) PWM 15360Hertz(Optioanl) |
PWM 3840 Hertz PWM 7680 Hertz(Optioanl) PWM 15360Hertz(Optioanl) |
PWM 3840 Hertz PWM 7680 Hertz(Optioanl) PWM 15360Hertz(Optioanl) |
| Input Power Frequency | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz |
| Input Voltage(AC) | 100-240 | 100-240 | 100-240 | 100-240 |
| Ingress Protection | IP68 | IP68 | IP68 | IP68 |
| Max Power Consumption | 800Watt/㎡(Standard One) 500Watt/㎡(Energy Saving One) |
800Watt/㎡(Standard One) 500Watt/㎡(Energy Saving One) |
800Watt/㎡(Standard One) 500Watt/㎡(Energy Saving One) |
800Watt/㎡(Standard One) 500Watt/㎡(Energy Saving One) |
| Average Power Consumption | 400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
| Panel Weight(Kgs) | 29 | 29 | 29 | 29 |
| Viewing Angle | Horizontal140 deg;Vertical 140 deg | |||
| Operating environment | Temperature:-20℃ +60℃ Humidity:10%-90%RH | |||
