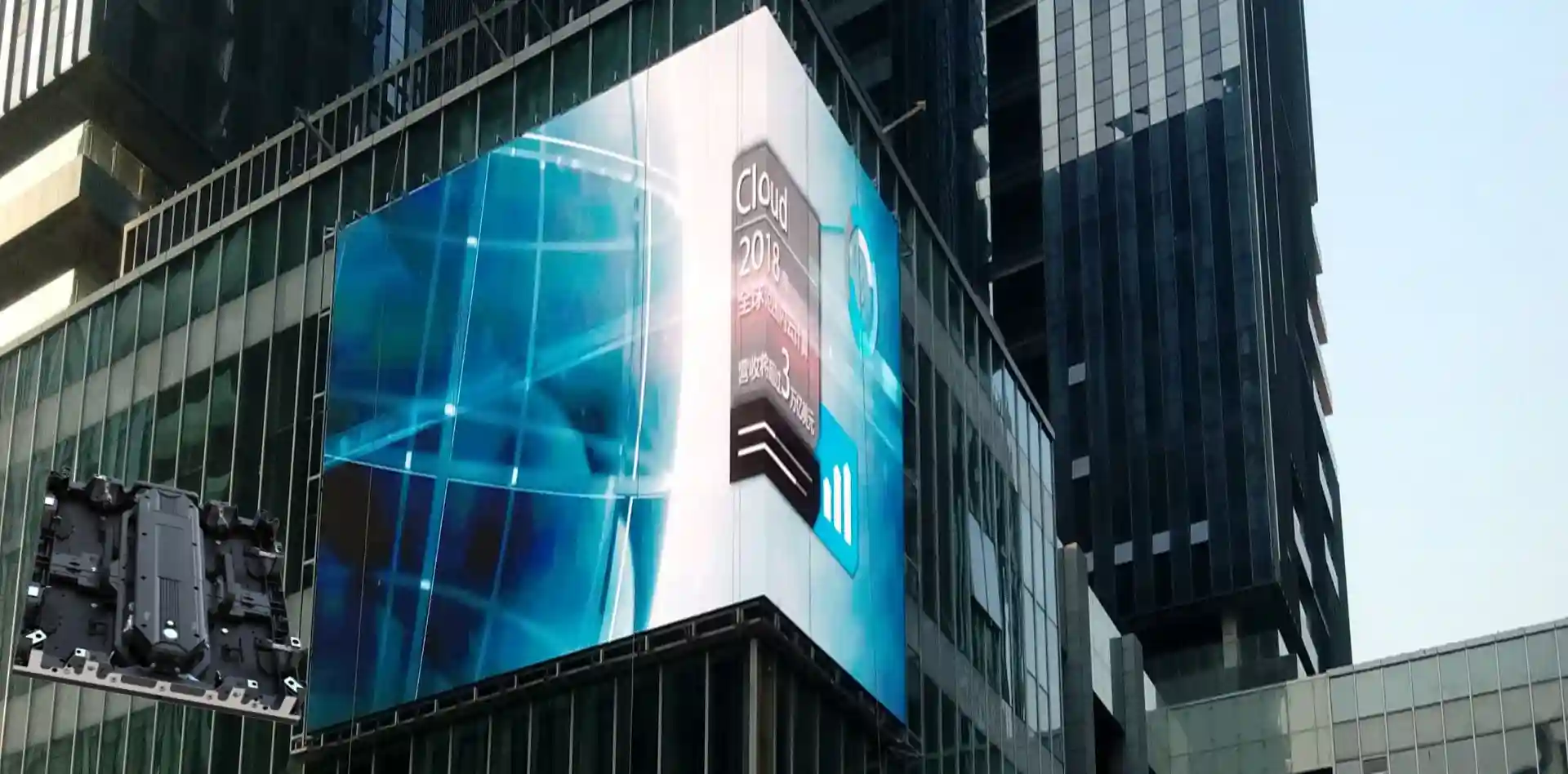

Outdoor Fine Pitch LED Display
- Pixel Pitch: P1.25, P1.3, P1.5625, P1.95

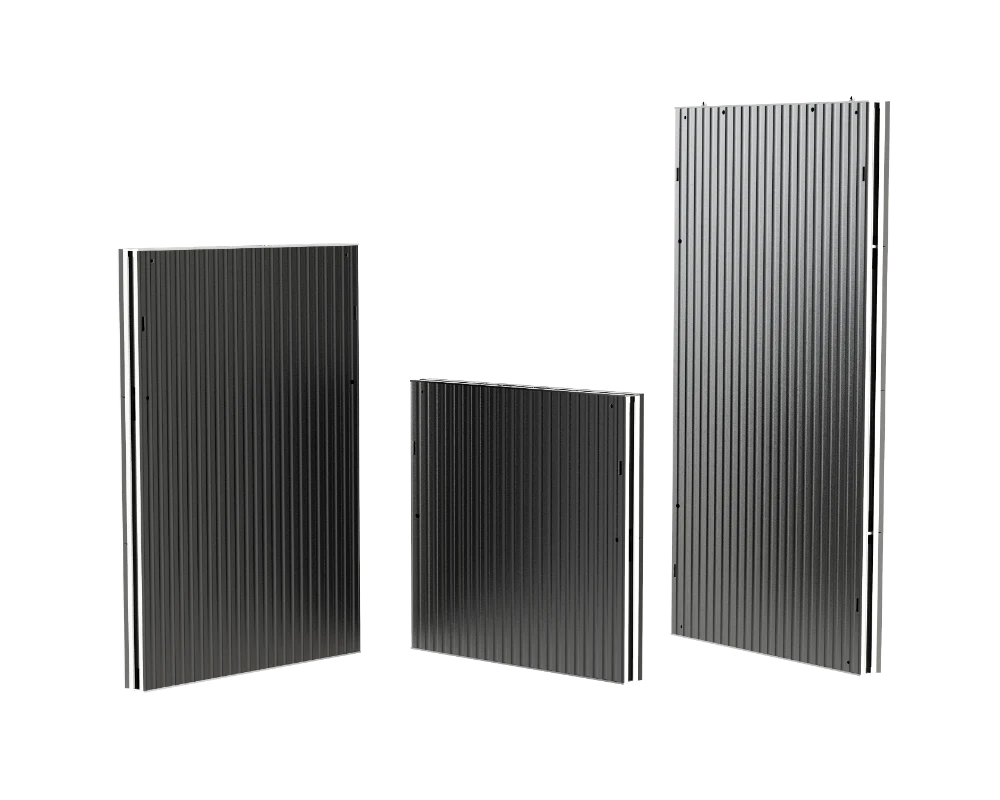

- Cabinet Dimension (mm): 500X500X58mm / 500X750X58mm / 500X1000X58mm
- Refresh Rate (Hz): 3840-7680
- Operating Temp/RH (℃/RH): -20~60℃/10%-85%
- Protection Grade: IP65
- Applicable Standards: CCC/CE/RoHS/FCC/CB/TUV/IEC
Outdoor Fine Pitch LED Display
SWHD Series- MIP Packaging Technology
- High Brightness
- Fine Pixel Pitch
- Common Cathode (Optional)
- All-Aluminum Structure
- Front Maintenance
- IP65 Protection Rating
Customer Real Projects
High‑Resolution Outdoor Fine Pitch LED Display Series
Main Product Features
High‑Resolution Outdoor Fine Pitch LED Display

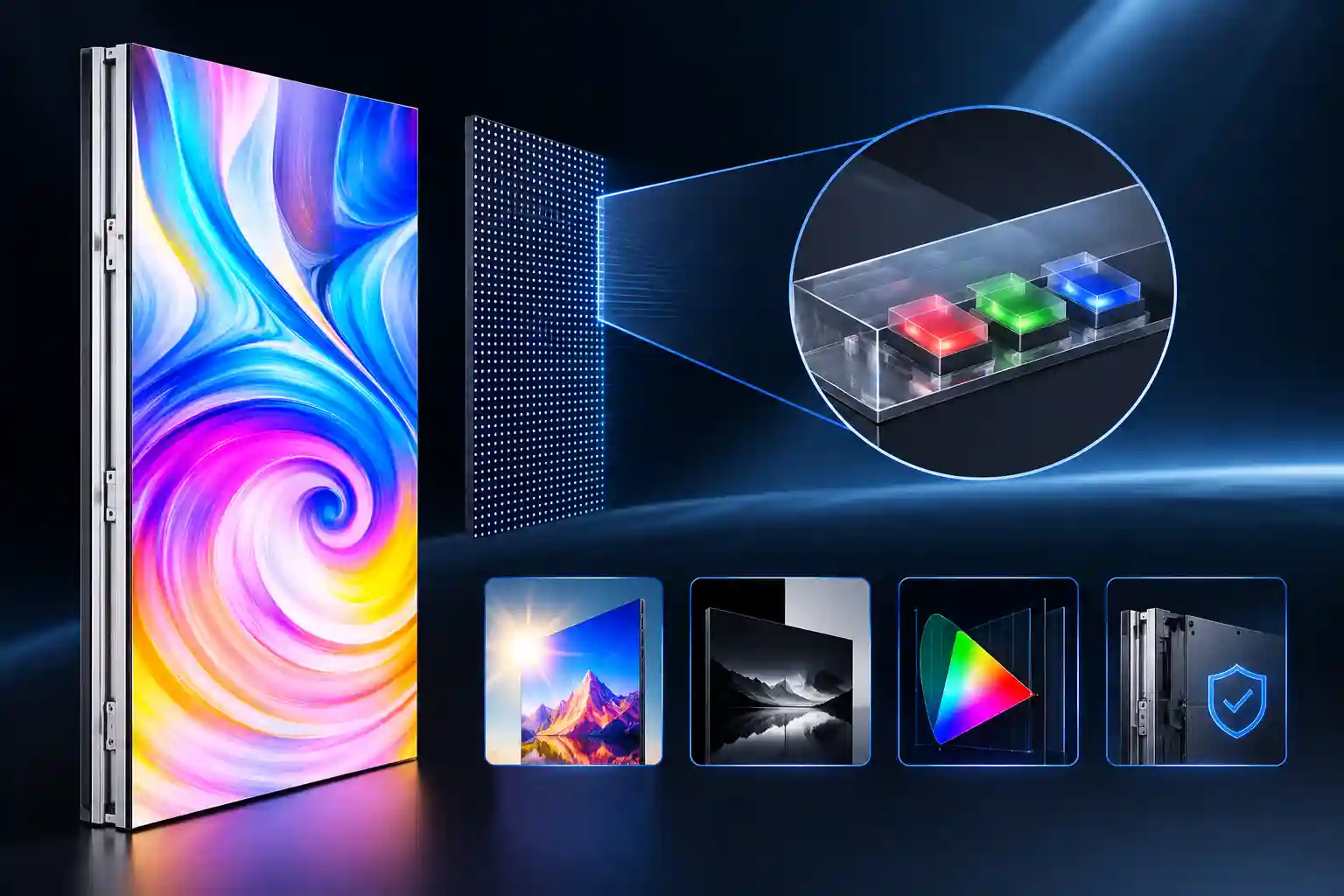

Advanced MIP Packaging Technology LED Display
Powered by innovative MIP (Micro LED in Package) technology, this cutting‑edge LED display delivers exceptional visual performance for commercial advertising and fine‑pitch applications. By optimizing chip‑level packaging, it significantly enhances overall brightness, contrast ratios, and color uniformity while boosting structural stability and long‑term reliability.

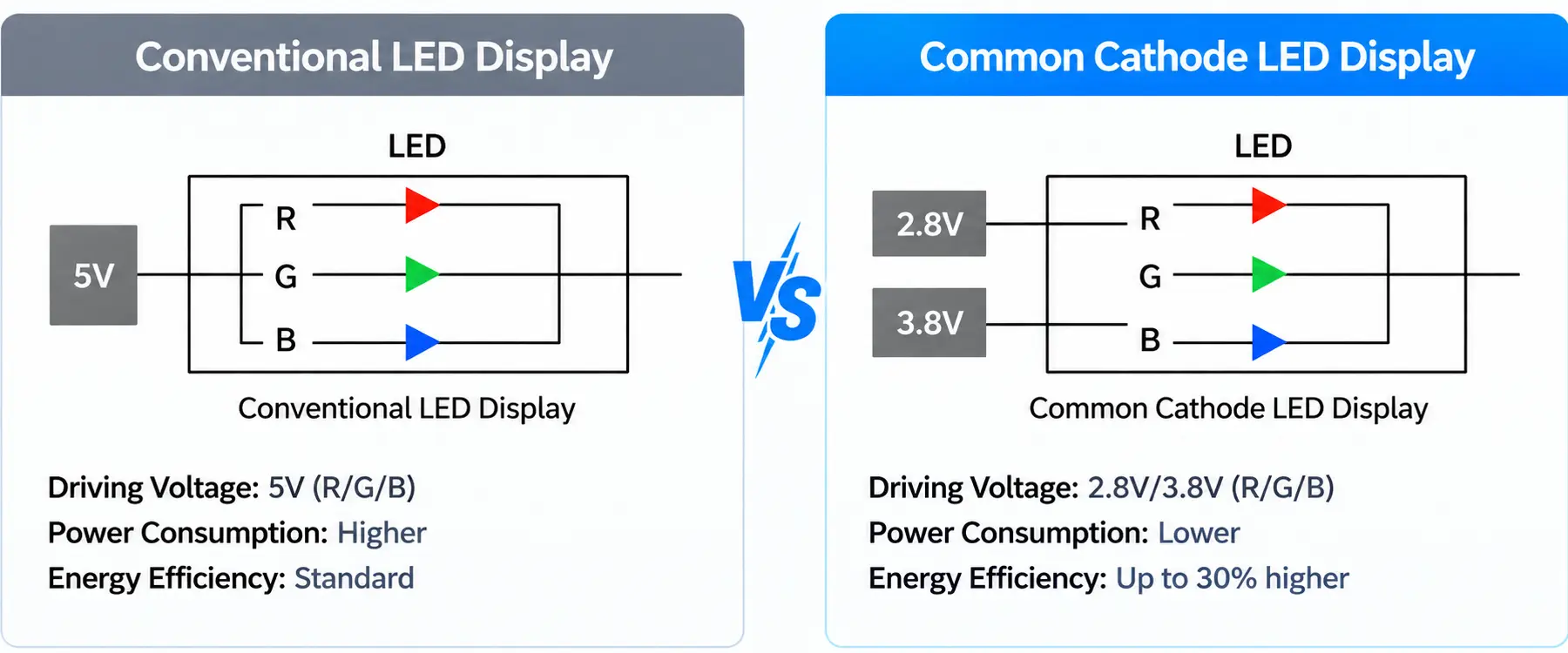

Energy‑Saving Common Cathode Outdoor LED Display Solution
Adopt advanced common cathode driving technology to achieve precise power supply distribution, significantly reduce energy consumption, and save 30% on energy costs for commercial outdoor LED applications.

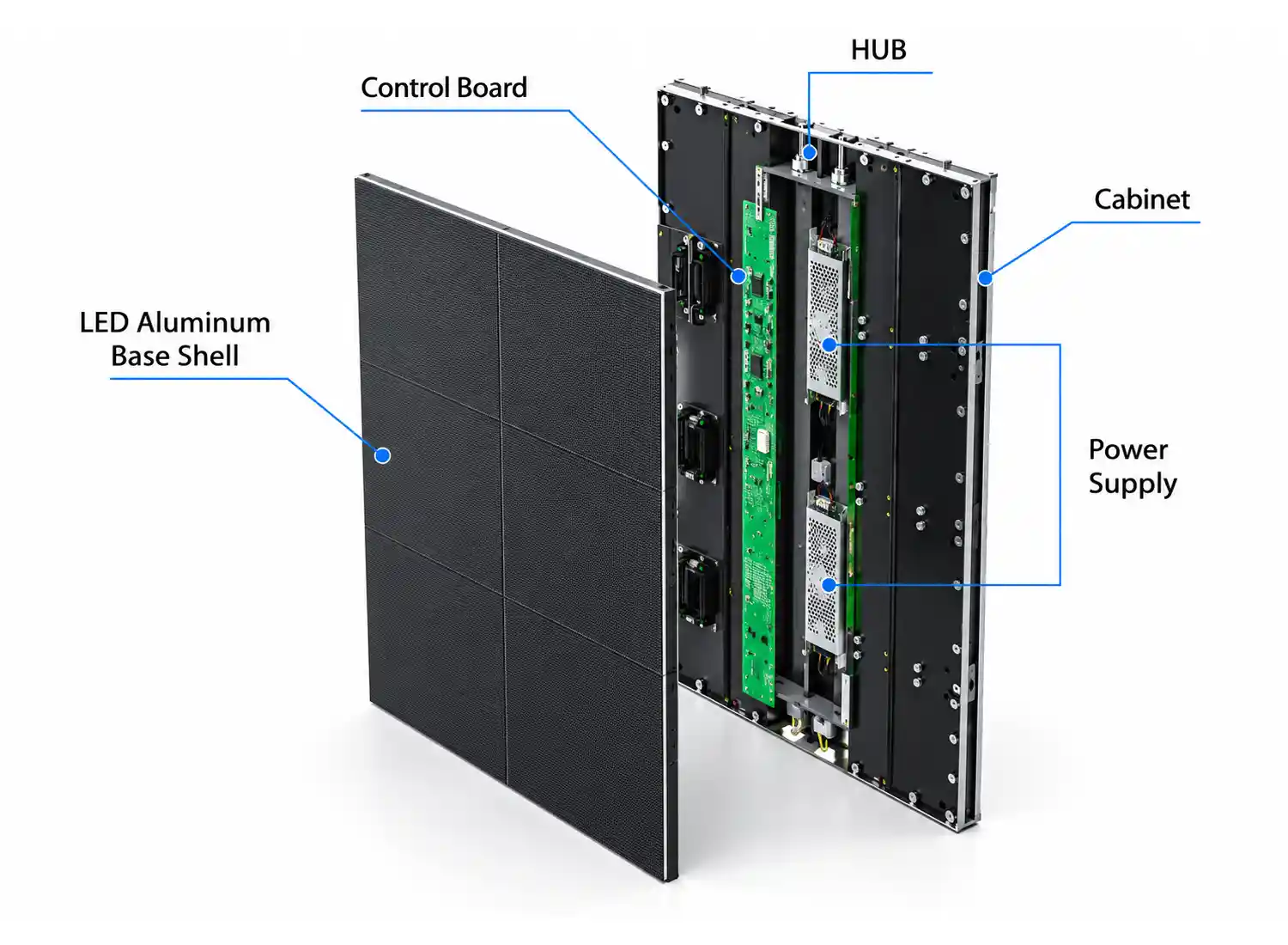

All‑Aluminum Outdoor LED Display
Featuring both a die‑cast aluminum cabinet and aluminum LED module backplane, this outdoor LED display delivers superior heat dissipation, high structural strength, and excellent corrosion resistance. The all‑aluminum design reduces heat buildup and improves long‑term stability, making it ideal for outdoor LED advertising, digital billboards, and large‑scale commercial LED displays.
High‑Brightness Outdoor Advertising LED Display
Engineered for crystal‑clear daylight visibility, this high‑brightness outdoor LED display delivers 3000 to 4000 nits of illumination to ensure sharp, vivid images even under direct, scorching sunlight. Designed to withstand demanding outdoor conditions, it guarantees maximum advertising impact and visual clarity from any viewing angle.

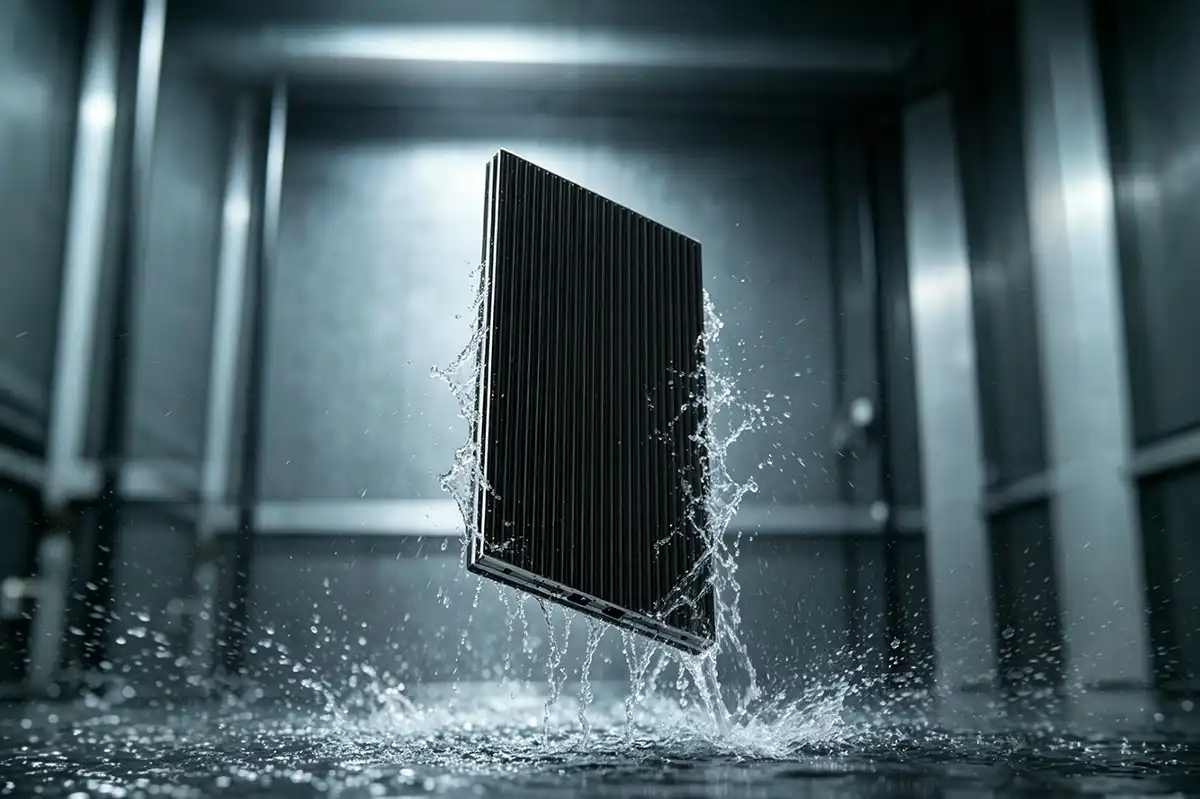

IP65 Weatherproof Outdoor LED Display
Engineered with IP65 weatherproof protection, this outdoor LED advertising display provides excellent resistance to rain, dust, wind, corrosion, and salt spray. Its durable outdoor design ensures stable performance in demanding environments, making it ideal for outdoor LED billboards, commercial advertising screens, and large‑scale digital signage.

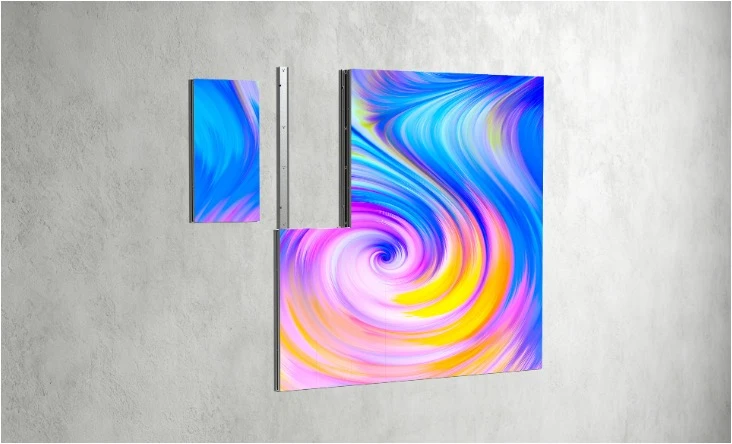

Front Maintenance Outdoor LED Display
Designed with a convenient front maintenance system, this outdoor LED display allows LED modules, power supplies, and receiving cards to be serviced directly from the front. It reduces rear maintenance space requirements and provides greater installation flexibility, making it ideal for outdoor advertising, wall‑mounted LED billboards, and commercial LED display installations.
Frequently Asked Questions
- Dustproof, moisture-proof, rust-proof and corrosion-resistant.
- Ultra-high-definition image output with multiple pixel pitch options.
- A variety of flexible installation methods.
- Durable and reliable with long service life.
Product Specification
| Pixel Pitch | P1.25 | P1.3 | P1.5625 | P1.95 |
|---|---|---|---|---|
| LED Lamp Type | MIP0505 | MIP0606 | MIP0606 | MIP0606 |
| Pixel Density (dots/㎡) | 640000 | 589824 | 409600 | 262144 |
| Module Resolution | 200X200 | 192X192 | 160X160 | 128X128 |
| Module Dimension (W×H) | 250X250 | 250X250 | 250X250 | 250X250 |
| Cabinet Dimension (mm) | 500X500X58mm / 500X750X58mm / 500X1000X58mm | |||
| Cabinet Resolution | 400X400 / 400X600 / 400X800 | 384X384 / 384X576 / 384X764 | 320X320 / 320X480 / 320X641 | 256X256 / 256X384 / 256X512 |
| Cabinet Module Layout (W×H) | 2X2 / 2X3 / 2X4 | 2X2 / 2X3 / 2X4 | 2X2 / 2X3 / 2X4 | 2X2 / 2X3 / 2X4 |
| Cabinet Weight | 8.8kg /12kg | 8.8kg /12kg | 8.8kg /12kg | 8.8kg /12kg |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Material | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Brightness (Nits) | 3000-4500 | 3000-4500 | 3000-4500 | 3000-4500 |
| Color Temperature (K) | 5000-12000 (Opt.) | 5000-12000 (Opt.) | 5000-12000 (Opt.) | 5000-12000 (Opt.) |
| View Angle (H/V) | 170° /170° | 170° /170° | 170° /170° | 170° /170° |
| Optimum Viewing Distance | 3-50m | 3-100m | 4-150m | 4-150m |
| Contrast Ratio | 15000 : 1 | 15000 : 1 | 15000 : 1 | 15000 : 1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 |
| Driving Method | 1/25 scan | 1/24 scan | 1/20 scan | 1/16 scan |
| Grayscale Level | 12-16bit (Opt.) | 12-16bit (Opt.) | 12-16bit (Opt.) | 12-16bit (Opt.) |
| Refresh Rate (Hz) | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 |
| Maximum Power Consumption (W/㎡) | 400 | 400 | 400 | 400 |
| Average Power Consumption (W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 |
| Power Supply Requirement | AC90-264V,47-63Hz | |||
| Operating Temp/RH (℃/RH) | -20~60℃/10%-85% | |||
| Storage Temp/RH (℃/RH) | -20~60℃/10%-85% | |||
| Applicable Standards | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||
