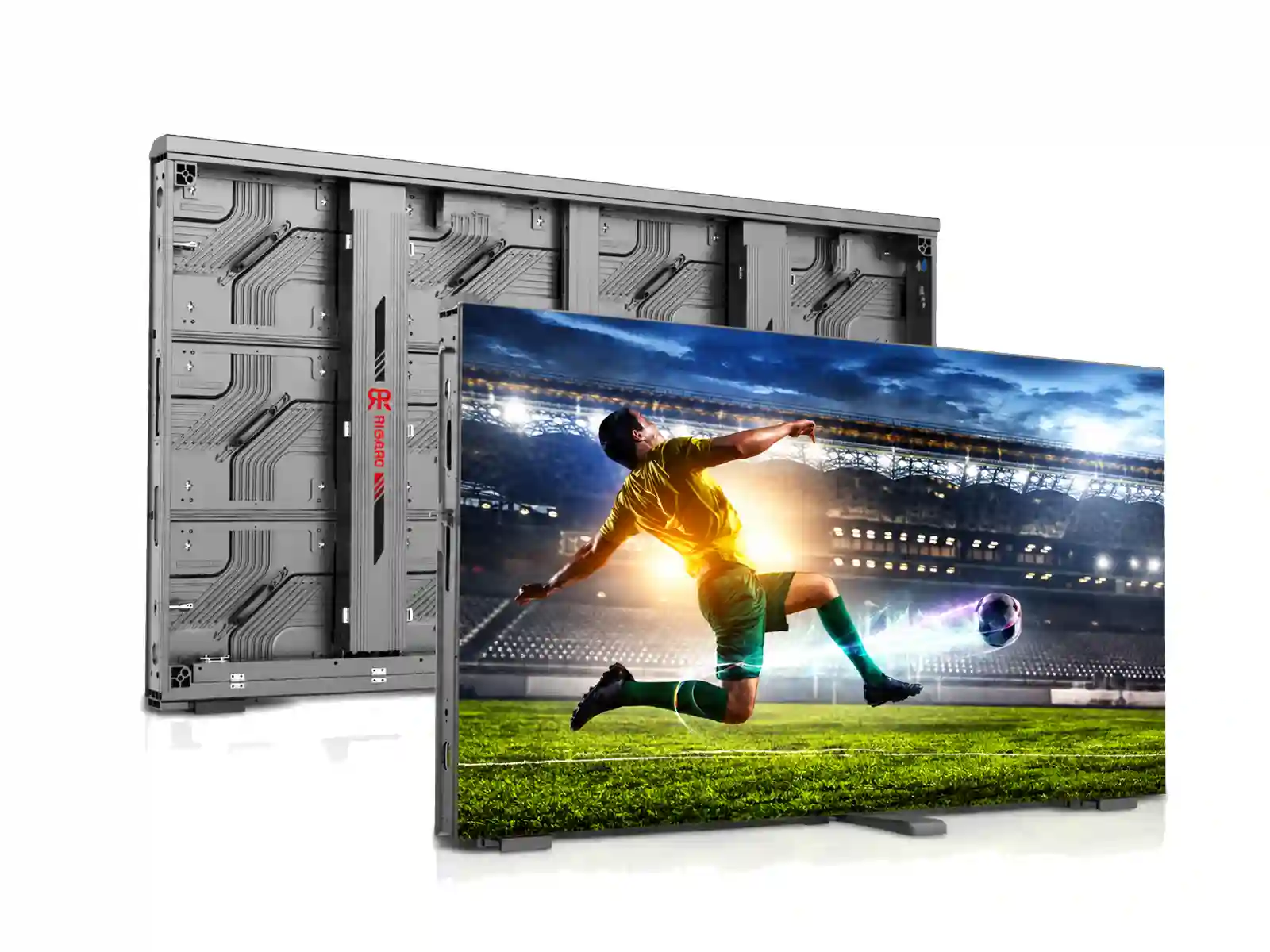

UEFA Standard Perimeter LED Display
- Pixel Pitch: P6.25, P8.33, P10
- Module Size(WXH): 400X300
- Panel Size(mm): 1600X900X90
- Maintenance Method: Front/Rear maintenance
- Refresh rate(Hz): 3840‑7680‑15360
- Viewing angle(H/V): 140° /160°
- Ingress Protection: IP66
UEFA Standard Perimeter LED Display
WL900 Series- UEFA Standard Specification
- Multi‑Level Impact Protection
- Concealed Wiring & Built‑In Air Switch
- Front & Rear Dual Maintenance
- Dual Power & Signal Redundancy Backup
- Ultra‑High Brightness
- 160° Wide Viewing Angle
- High Refresh Rate
- Dedicated Stackable Transport Cart

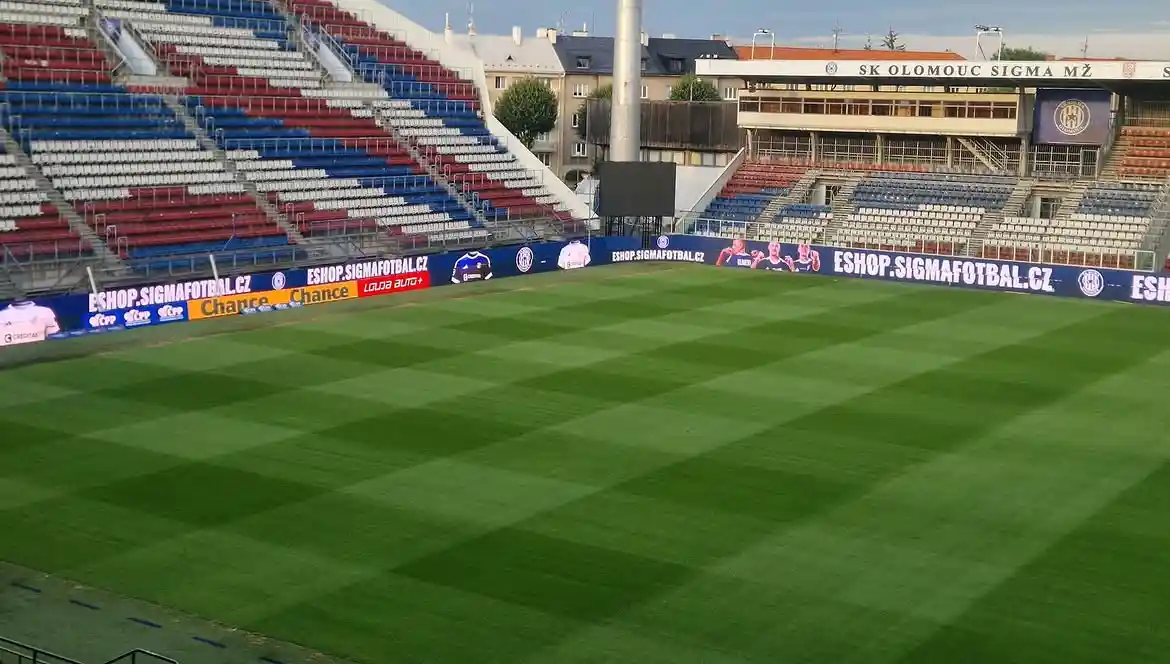

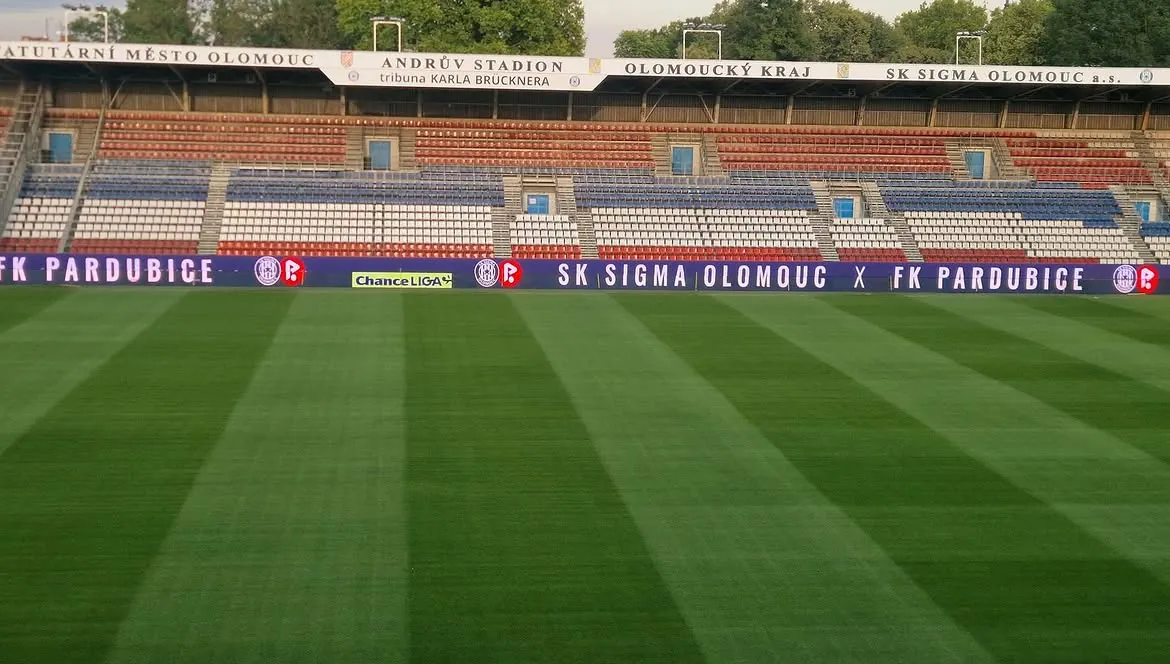

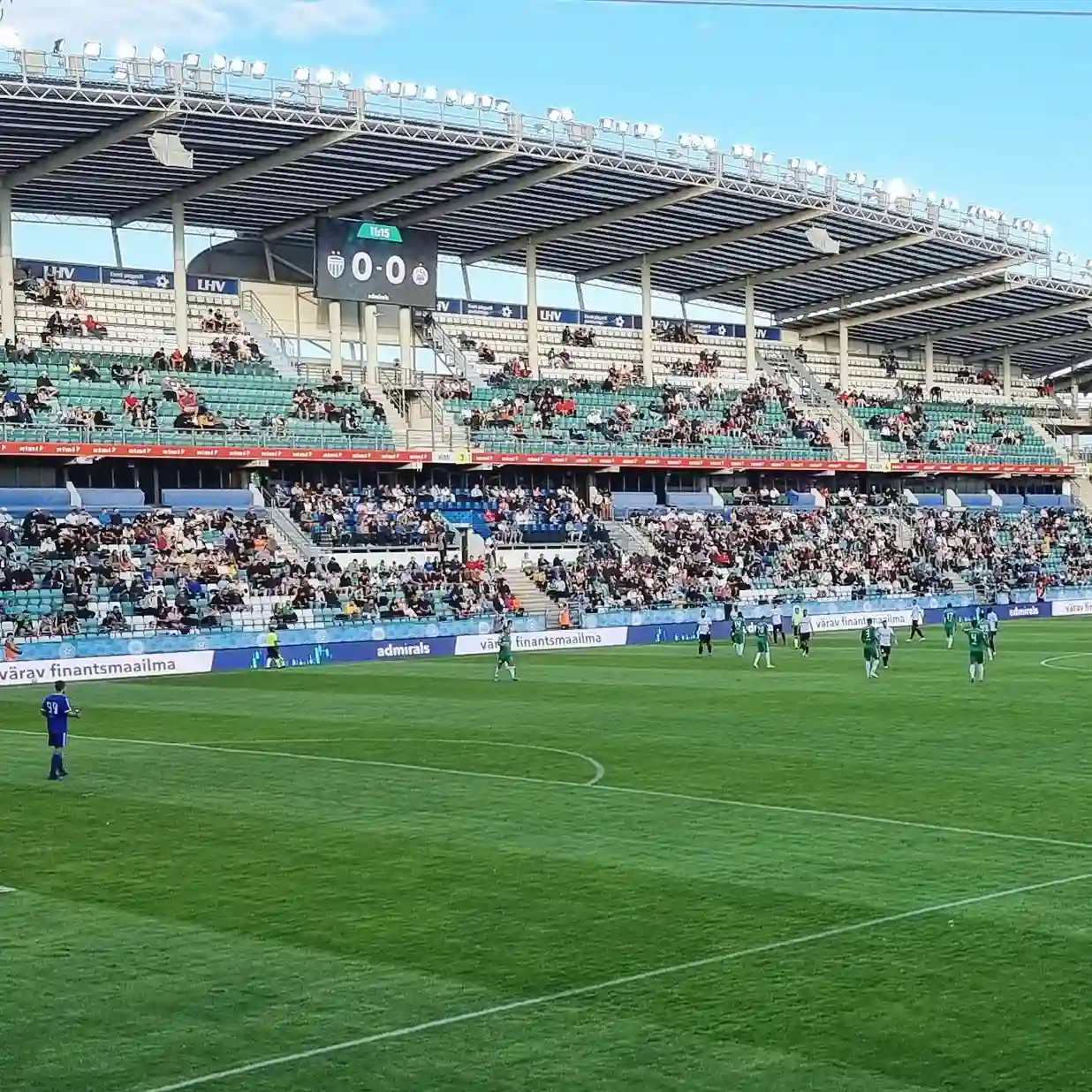

Customer Real Projects
1600x900mm UEFA Standard Perimeter LED Display Screen
Main Product Features
FIFA/UEFA‑level — 1600x900mm Stadium Perimeter LED Display Screen
Protection System — All‑Around Athlete & Impact Protection Safety System
Engineered specifically for high‑intensity soccer and sports venues, this stadium perimeter LED screen incorporates a multi‑tier shock‑absorption architecture. Combining flexible soft rubber module masks, high‑density anti‑collision EVA foam along the top and side frames, and heavy‑duty base protection pads, the system effectively cushions high‑speed athlete collisions while shielding internal LED components from severe ball strikes—fully compliant with international stadium safety regulations.

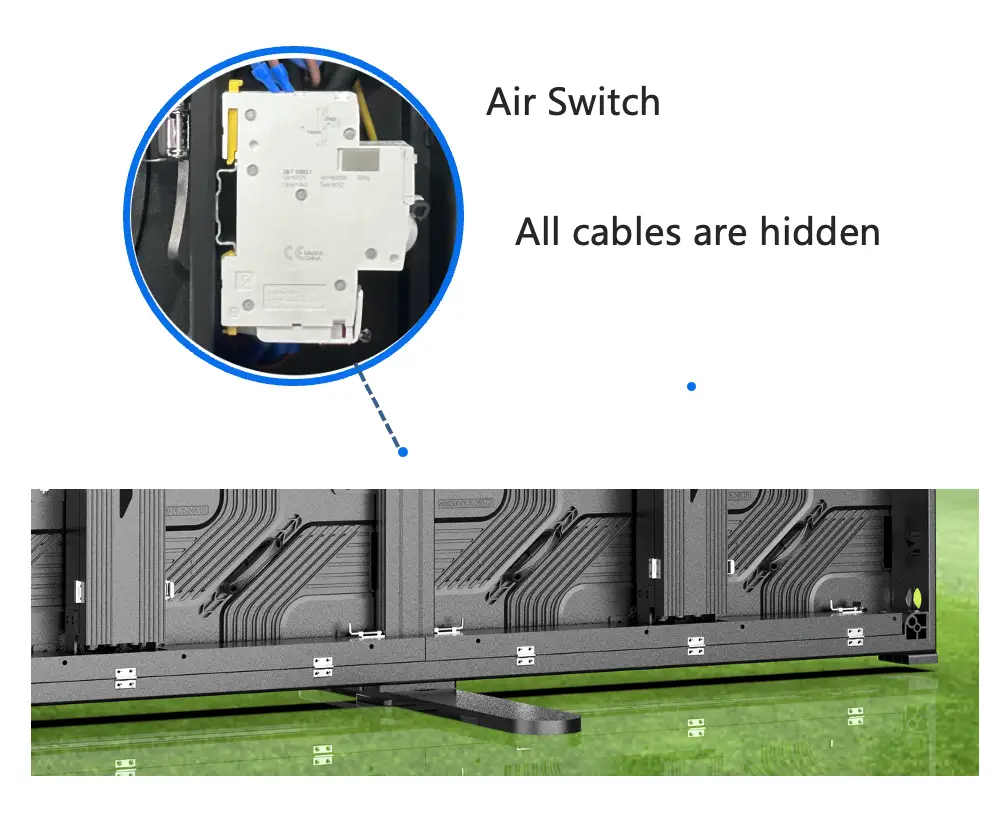

Safe & Reliable — Concealed Wiring and Power Protection
The Stadium Perimeter LED Display is designed with a smart cable management system and built‑in power protection to ensure safe and reliable operation in demanding outdoor environments. Hidden cables provide a cleaner appearance and better protection, while the integrated air switch improves electrical safety and simplifies maintenance. Ideal for football stadiums, soccer fields, and professional sports advertising applications.

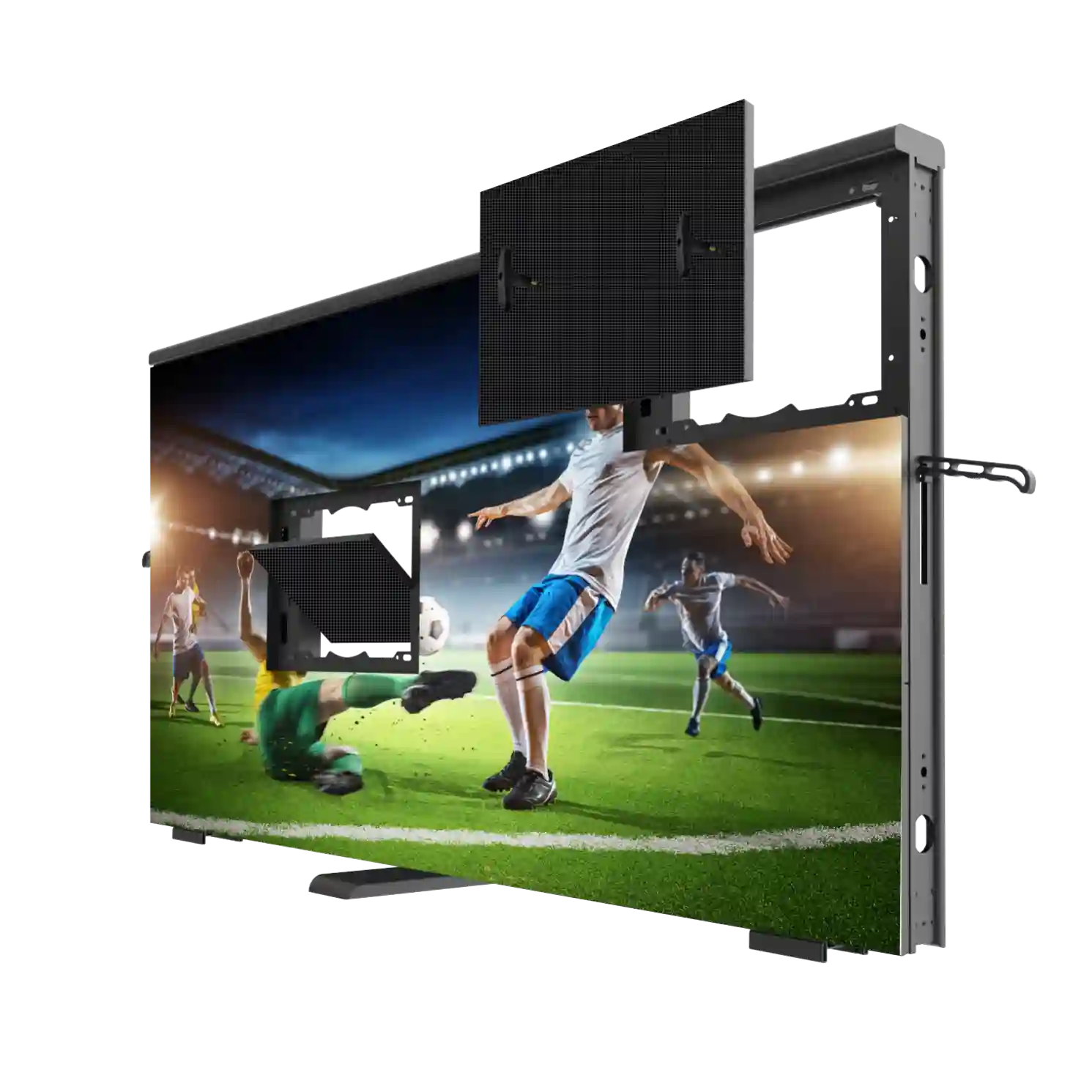

Dual Front & Rear Maintenance — Fast‑Service Stadium Perimeter LED Screen
- Maintenance Feature: Built for zero‑downtime tournament action, this stadium perimeter LED screen features full front and rear dual‑access maintenance. Venue technicians can swap out individual modules in under 15 seconds directly from the pitch side, keeping sponsor ads running without disrupting live match coverage.

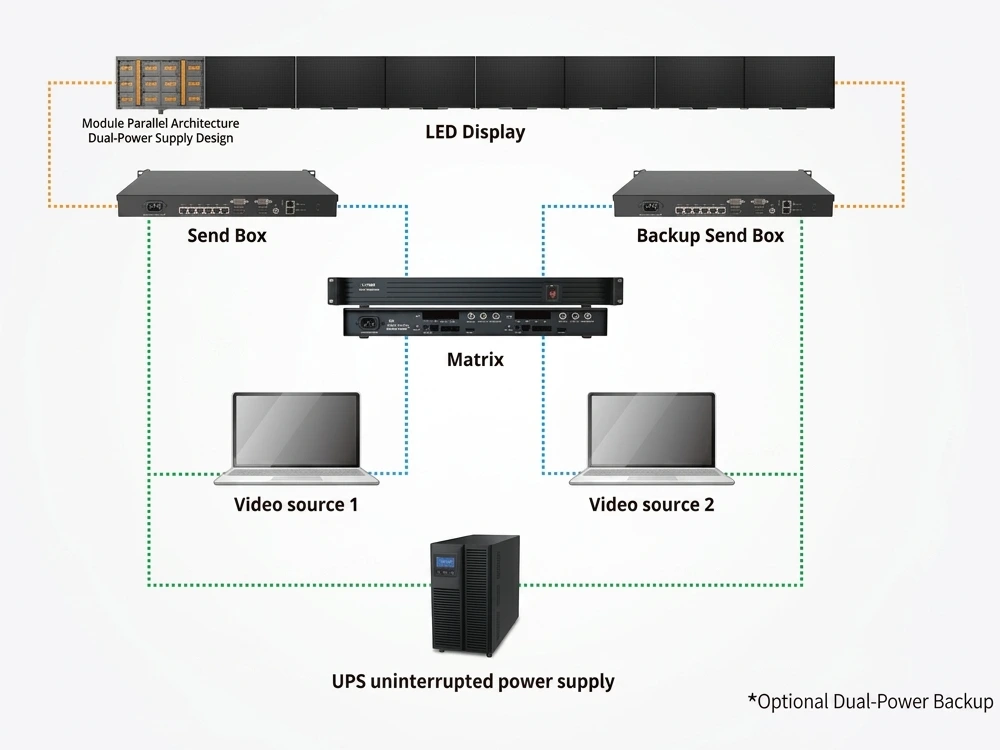

Reliable Performance — Dual Power & Signal Backup System
- Backup System: Ensure uninterrupted LED display operation with a professional dual‑power and signal backup system. The LED display supports redundant power supply, backup sending boxes, and UPS integration to provide stable performance during critical events. Designed for stadiums, broadcast studios, control rooms, and large‑scale commercial LED screens, this reliable architecture minimizes downtime and guarantees continuous, high‑quality visual experiences.

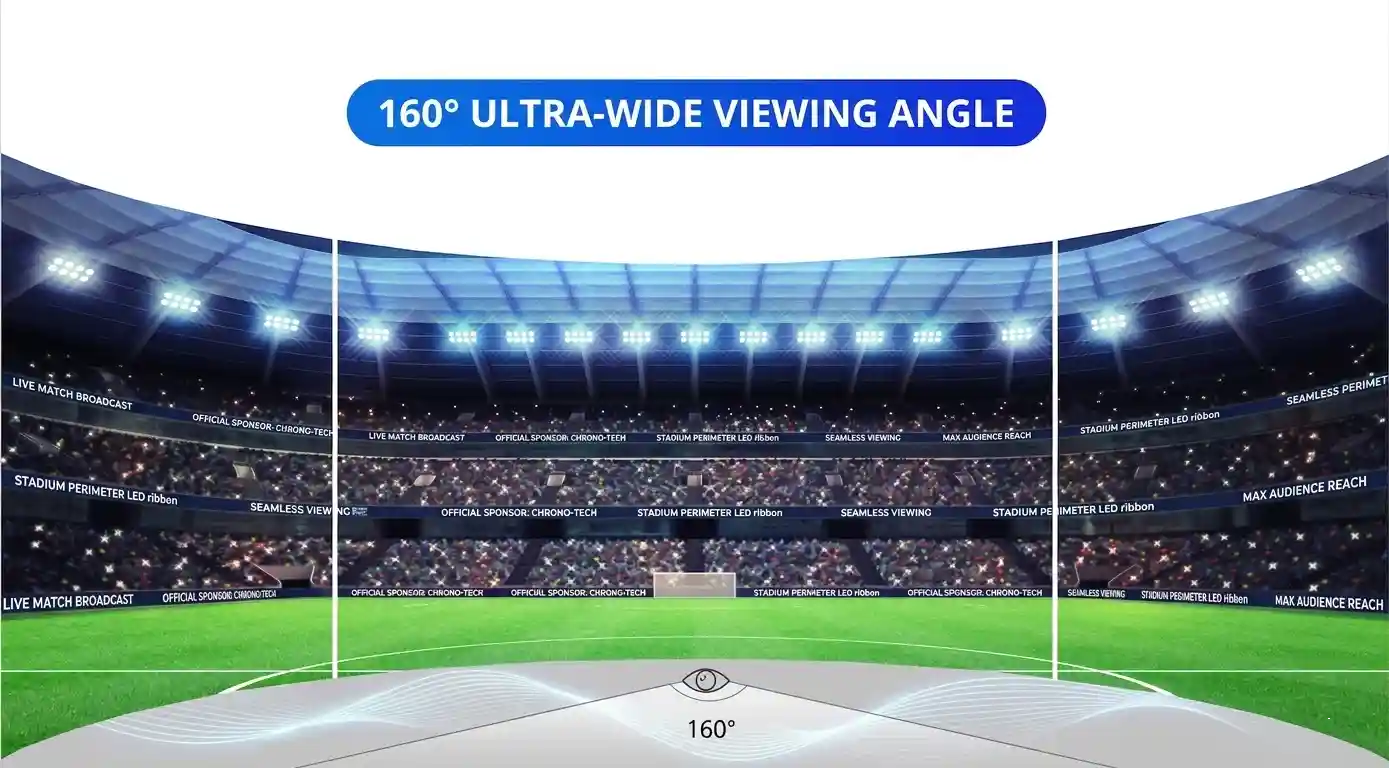

Ultra‑Wide perspective — 160° Ultra‑Wide Viewing Angle
Maximize audience reach and broadcast visibility with our stadium perimeter LED display, featuring a massive 160° viewing angle. Whether spectators are seated in the central stands, high‑tier bleachers, or corner flags, this display ensures perfectly uniform brightness and true‑to‑life colors from any perspective, eliminating off‑axis color distortion and dark spots.

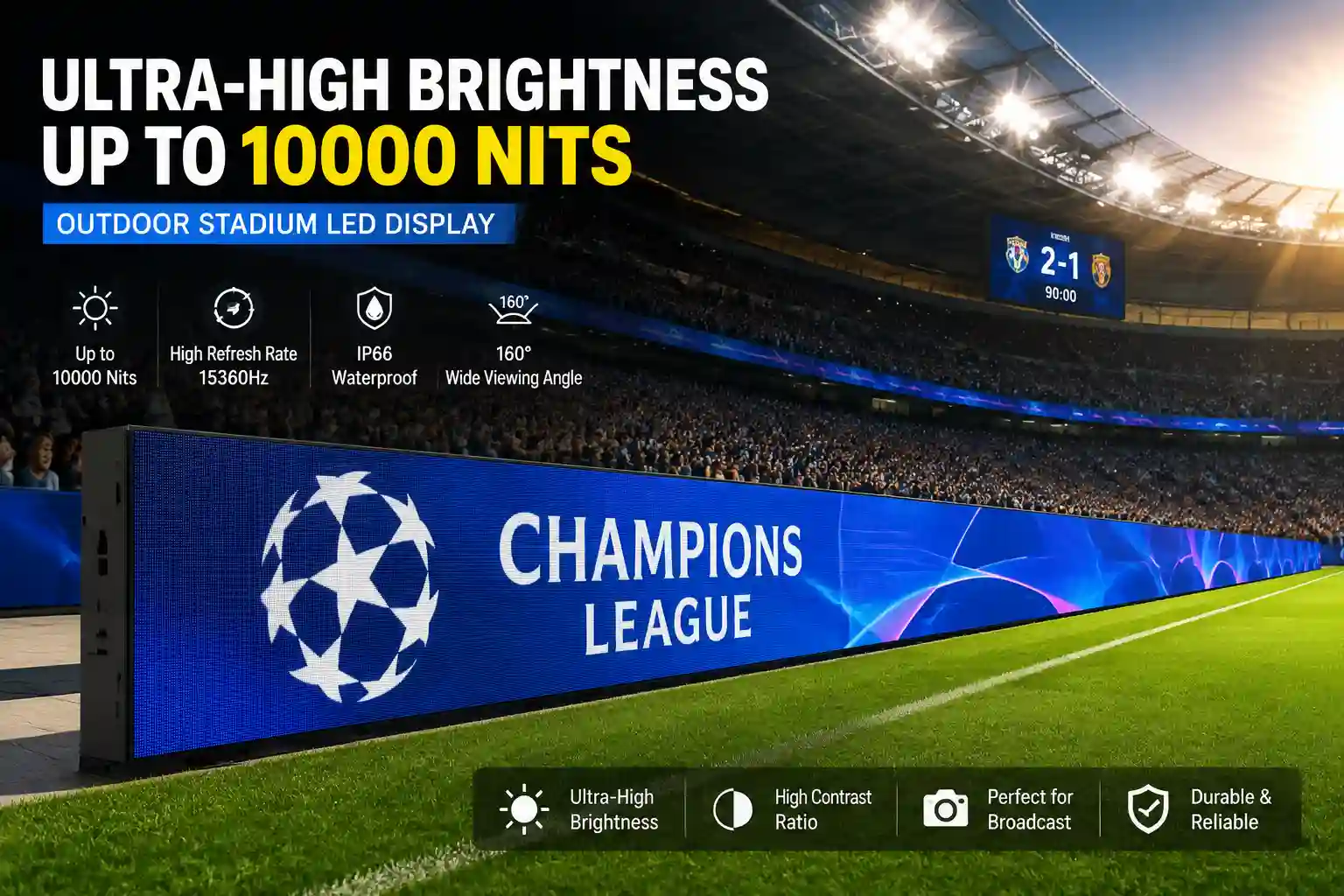

ultra‑high brightness — Ultra‑High Brightness up to 10,000 Nits
- Brightness Performance: Designed for outdoor sports environments, RIGARD Stadium Perimeter LED Display delivers ultra‑high brightness up to 10,000 nits, ensuring clear and vivid images even under direct sunlight. The high‑brightness LED technology enhances visibility for spectators, players, and broadcast cameras, making it the ideal solution for football stadiums, sports arenas, and large outdoor events.
Ultra‑High Refresh Rate — 15360Hz Ultra‑High Refresh Rate Stadium LED Display
Say goodbye to screen flickering on live TV. Specifically designed for professional broadcasting, our 15360Hz high refresh rate stadium LED screen stays perfectly smooth and clear under high‑speed cameras. It protects your sponsor's brand image with flawless video quality.

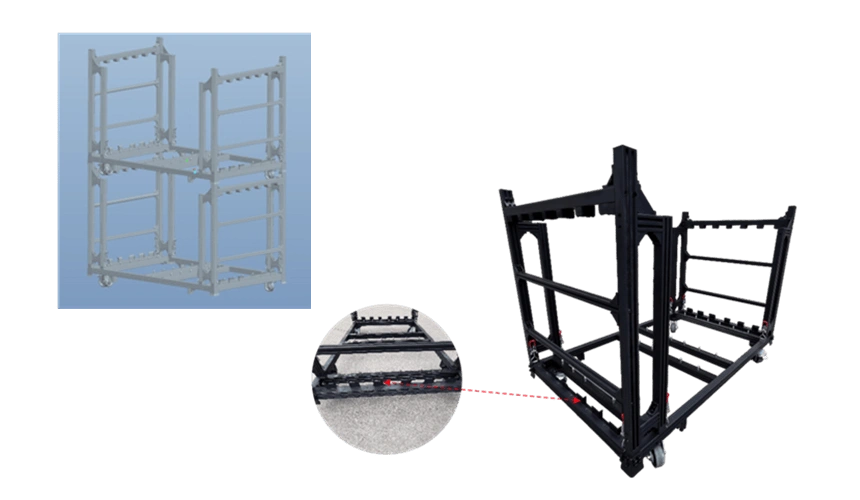

heavy‑duty cart — Stackable Transport Carts
Streamline your venue setup and teardown process. Designed specifically for 1600*900mm stadium perimeter panels, each heavy‑duty cart securely holds up to 4 cabinets. Featuring a space‑saving design, these carts can be safely stacked two high, making truck loading and warehouse storage incredibly efficient.
Frequently Asked Questions
- Weather-Ready Stadium LED Display
- Lightweight & Easy Maintenance
- Sports Safety Protection
- Ultra-Wide Viewing Vision
- IP65 Weather Resistance
Product Specification
| Parameter | P6.25 | P8.33 | P10 |
|---|---|---|---|
| LED Type | SMD2727 | SMD3535 | SMD3535 |
| Physical Density(dots/m²) | 25600 | 14400 | 10000 |
| Module resolution | 64X48 | 48X36 | 40X30 |
| Module size(WXH) | 400X300 | 400X300 | 400X300 |
| Display size(mm) | 1600X900X90 | 1600X900X90 | 1600X900X90 |
| Cabinet resolution | 256X144 | 192X108 | 160X90 |
| Module quantity | 4X3 | 4X3 | 4X3 |
| Panel weight(kg) | 36 | 36 | 36 |
| Maintenance | Front/Rear maintenance | Front/Rear maintenance | Front/Rear maintenance |
| Cabinet material | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | 6500/8000/10000 | 6500/8000/10000 | 6500/8000/10000 |
| Color temperature(K) | 5000‑12000 Optional | 5000‑12000 Optional | 5000‑12000 Optional |
| Viewing angle(H/V) | 140° /160° | 140° /160° | 140° /160° |
| Viewing distance | 6‑200m | 8‑200m | 10‑200m |
| Contrast ratio | 10000:1 | 10000:1 | 10000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/6 scan | 1/3 scan | 1/2 scan |
| Grey scale | 14‑16bit | 14‑16bit | 14‑16bit |
| Refresh rate(Hz) | 3840‑7680‑15360 | 3840‑7680‑15360 | 3840‑7680‑15360 |
| Max Power consumption(W/m²) | 680 | 680 | 680 |
| Avg. power consumption(W/m²) | 120‑200 | 120‑200 | 120‑200 |
| Protection level | IP66 | IP66 | IP66 |
| Power input | AC90‑264V, 47‑63Hz | AC90‑264V, 47‑63Hz | AC90‑264V, 47‑63Hz |
| Working temp./Humidity(°C/RH) | ‑20~60°C/10%~85% | ‑20~60°C/10%~85% | ‑20~60°C/10%~85% |
| Storage temp./Humidity(°C/RH) | ‑20~60°C/10%~85% | ‑20~60°C/10%~85% | ‑20~60°C/10%~85% |
