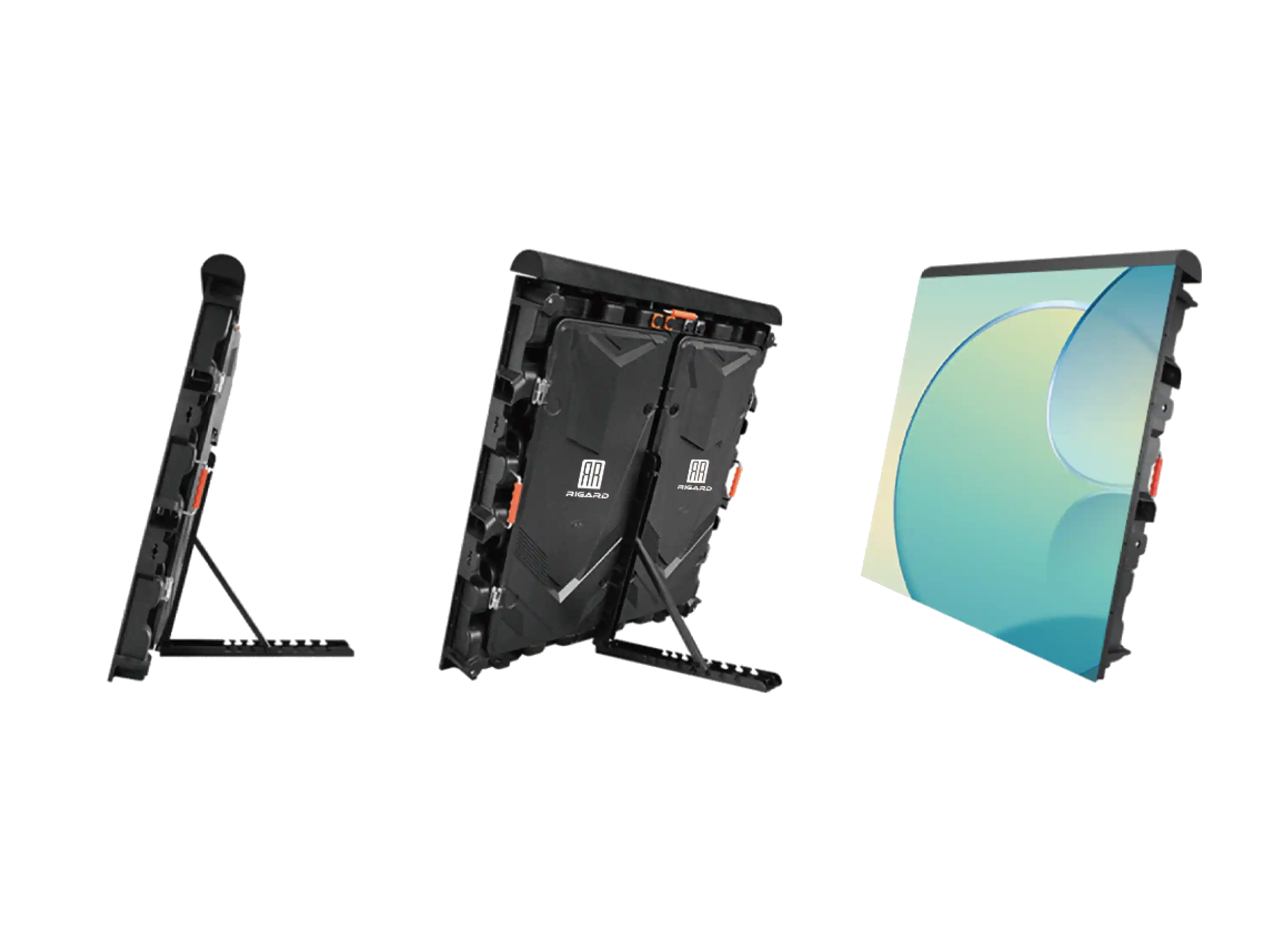

WL960 Series
Stadium Perimeter LED Screen
- Pixel Pitch: P4.44, P5.7, P6.67, P8, P10
- Module Size(mm): 480*320
- Panel Size(mm): 960*960*75
- Maintenance Method: Rear&Front
- Refresh Frequency: PWM 3840 Hertz, PWM 7680 Hertz(Optional), PWM 15360Hertz(Optional)
- Input Voltage(AC): 100‑240
- Ingress Protection: IP65,IP66
Features of Our
Stadium Perimeter LED Screen
WL960 Series- Ultra‑Slim Lightweight Magnesium Alloy Cabinet
- Tool‑Free Rear Maintenance
- Dual Impact Protection
- 140° Wide Viewing Angle
- High Refresh Rate
- Dedicated Stackable Transport Cart
Customer Real Projects
Show More Images
Show More Images
Show More Images
Show More Images
Show More Images

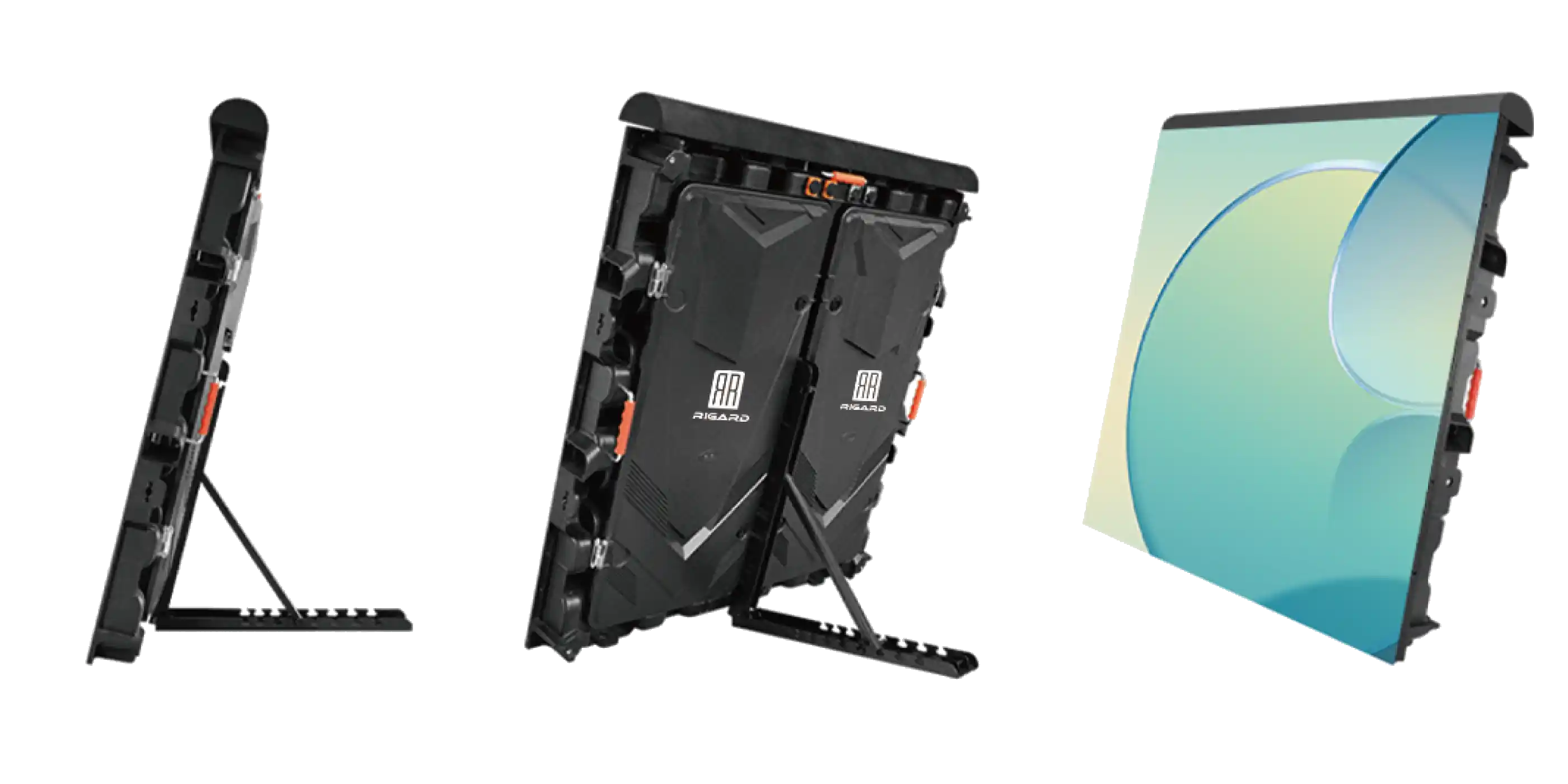

Stadium Perimeter LED Display WL960 Series Overviews
Professional‑grade perimeter LED display tailored for sports stadiums, integrating weather resistance, player‑safe structure, ultra‑wide viewing angle and high refresh rate, ideal for live match broadcasting, advertisement playback and large‑scale outdoor sports events.
Main Product Features
1. Ultra‑Slim Lightweight Magnesium Alloy Cabinet: It reduces transportation costs and venue load, and comes with ergonomic handles and a quick‑lock assembly structure for fast stadium setup; high structural precision enables seamless splicing.
2. Tool‑Free Rear Maintenance: The modular design enables convenient servicing during events.
3. Dual Impact Protection: A top cushion pad plus a highly flexible rubber mask cushions athlete impacts, protecting personnel while shielding the LEDs and meeting international stadium safety standards.
4. 140° Wide Viewing Angle: The 140° wide viewing angle ensures uniform brightness and color across every seat—corner stands, regular stands and VIP boxes—with no color shift or contrast loss.
5. High Refresh Rate: Two refresh rate options are available: standard 3840Hz and high‑refresh 7680Hz, delivering smooth footage for live shooting, reducing motion blur and flicker and suiting camera recording.
LED Displays: Core Principles and Selection Standards for Refresh Rate
6. Dedicated Stackable Transport Cart: Each cart holds 4 cabinets and supports double‑layer stacking for easy loading, transport and warehouse storage; cabinets come with adjustable support brackets for fast ground‑level setup, ideal for rental events.
Weather‑Ready Stadium LED Display
Engineered specifically for outdoor sports scenarios High‑brightness output for outdoor visibility Robust cabinet protection for long‑term durability Optimized viewing angles for stadium audiences Reliable performance for football & professional venues Supports ad playback, live events & real‑time content
LED Displays: Brightness Parameters and Scenario Adaptation Logic

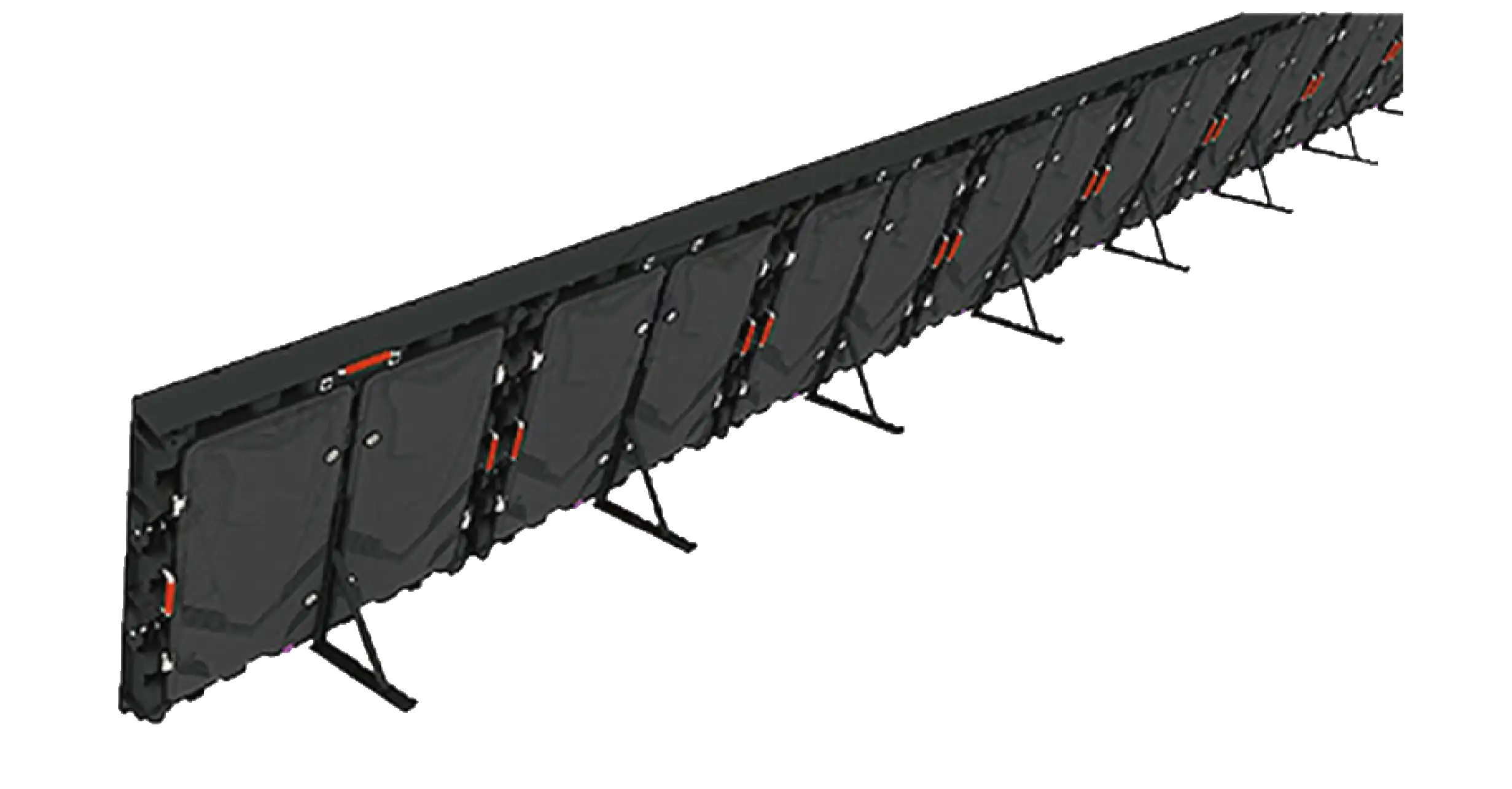

Seamless Stadium Integration
Designed for professional sports venues, the Perimeter LED Display delivers high brightness, high refresh rates, and reliable outdoor performance. The lightweight magnesium alloy cabinet ensures easy installation and maintenance, while the seamless alignment design provides a smooth visual experience around the stadium field.

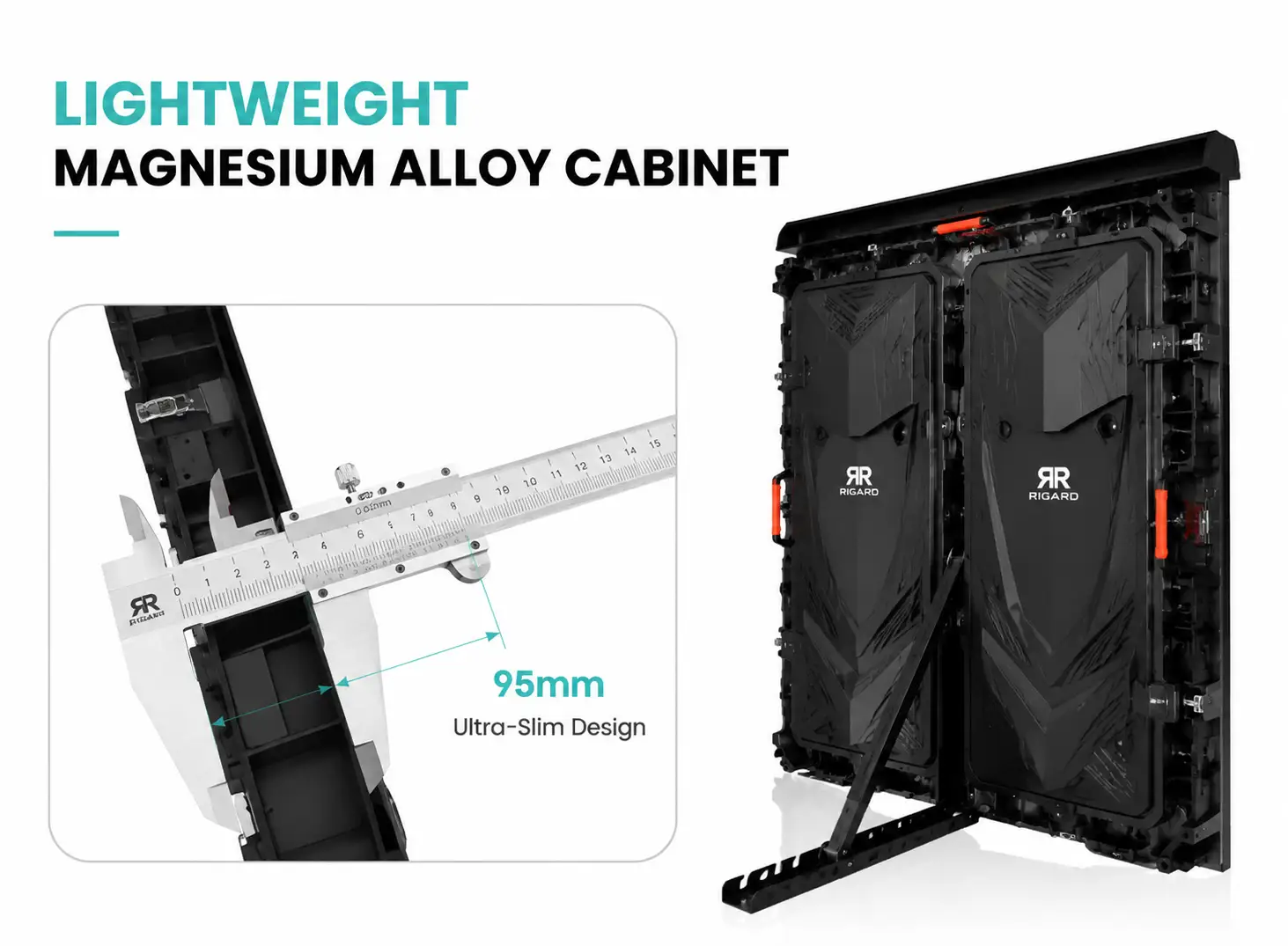

Ultra‑Lightweight & Slim Magnesium Alloy Cabinet
Ultra‑Lightweight & Slim Design: High‑grade magnesium alloy construction slashes cabinet weight, lowering freight expenses and structural load on venue supports.
Rapid Matchday Setup: Ergonomic handles and lightweight casing enable fast, labor‑saving transport and quick‑lock assembly around sports perimeters.
Streamlined Maintenance: High structural accuracy and modular layout ensure tool‑free, effortless rear service during high‑intensity sporting events.

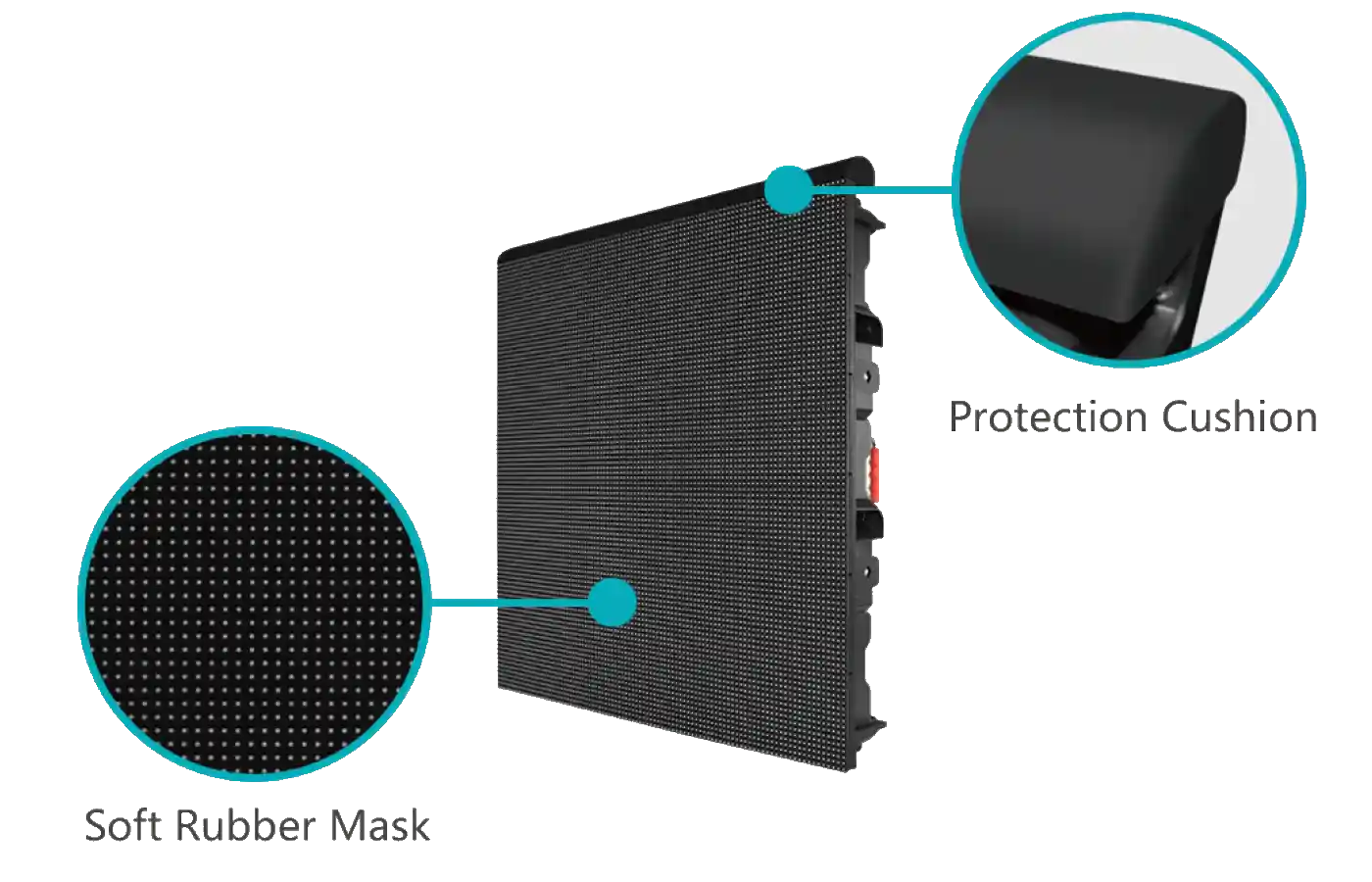

Player‑Safe Dual Impact Protection Design
- Safety Cushion & Soft Rubber Mask: Engineered specifically for high‑intensity sports arenas, this perimeter LED cabinet features an impact‑absorbing top protection cushion paired with an ultra‑flexible soft rubber mask.
- Dual‑Safety Architecture: This dual‑safety architecture effectively cushions athlete collisions to prevent on‑field injuries while shielding delicate LED diodes from heavy impacts—fully aligning with international sports venue safety and compliance standards.

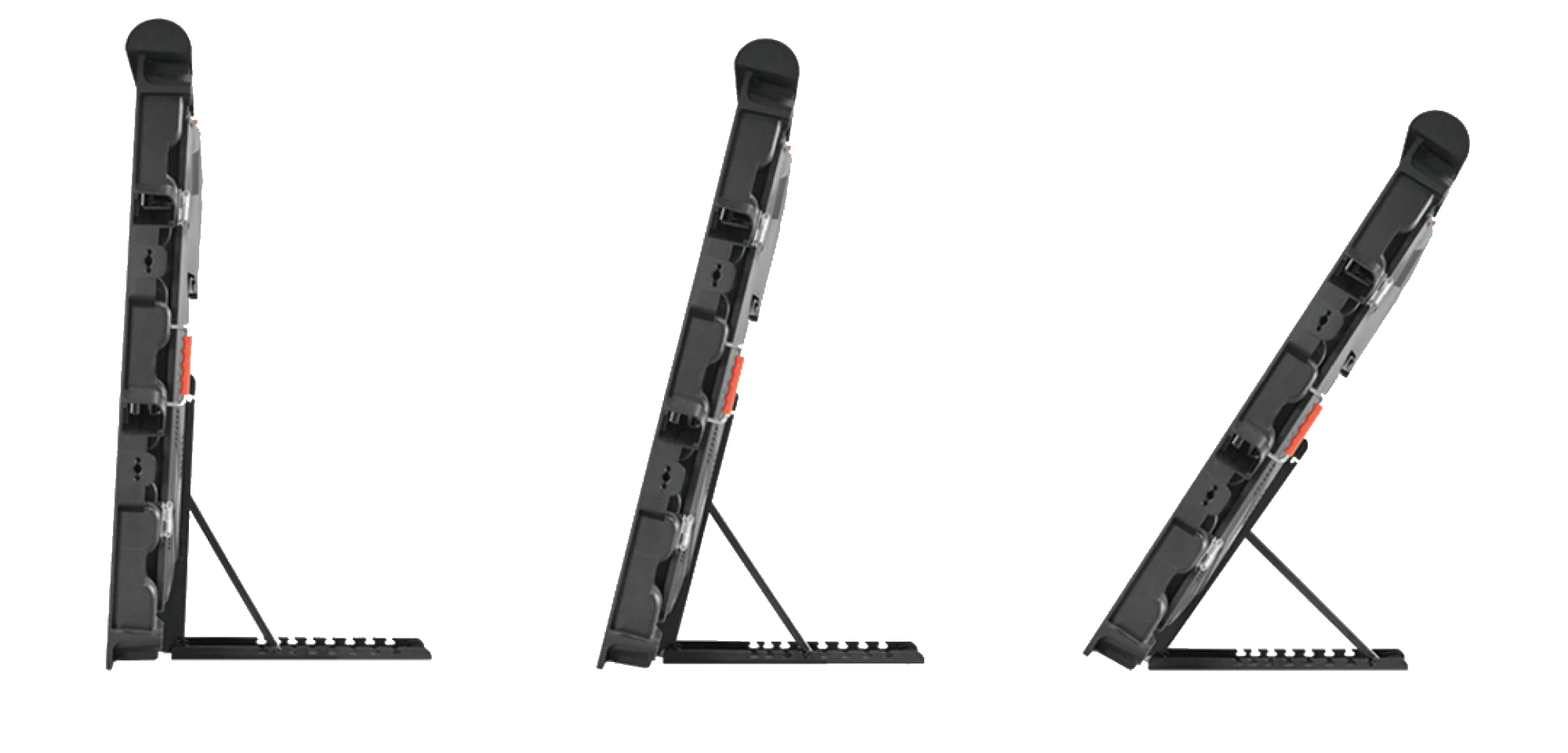

Flexible Viewing Angle Adjustment
The Perimeter LED Display features an adjustable cabinet angle from 65° to 90°, allowing flexible installation to optimize viewing performance. This innovative design ensures clear and consistent visibility for audiences from different seating areas, making it an ideal solution for professional sports stadiums and outdoor events.

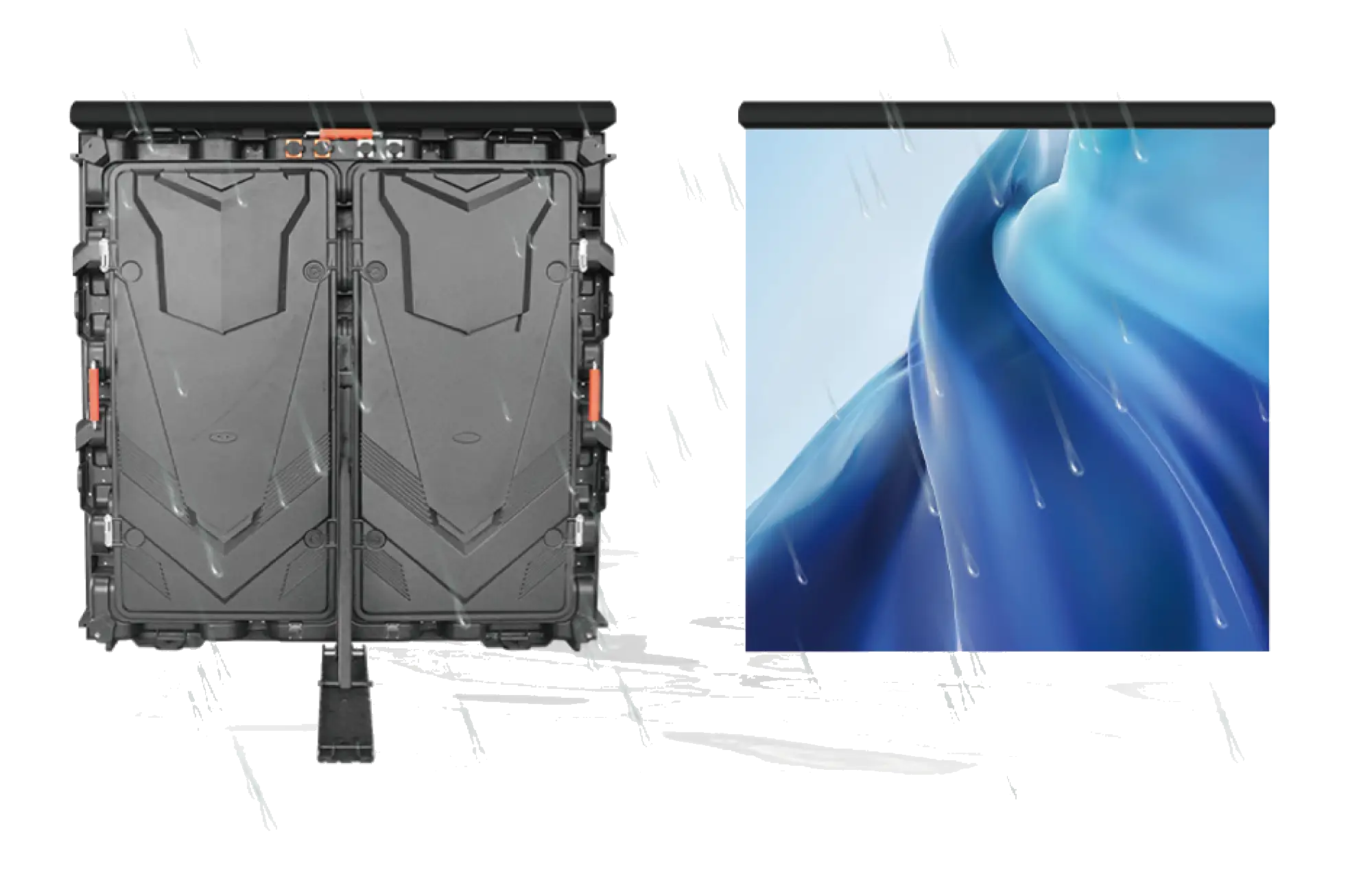

IP65 Waterproof Protection for Outdoor Reliability
Designed for outdoor sports venues and harsh environments, the perimeter LED display features an IP65‑rated waterproof cabinet design that provides reliable protection against rain, dust, and moisture. The durable structure ensures stable performance and long‑term operation without additional protective covers.

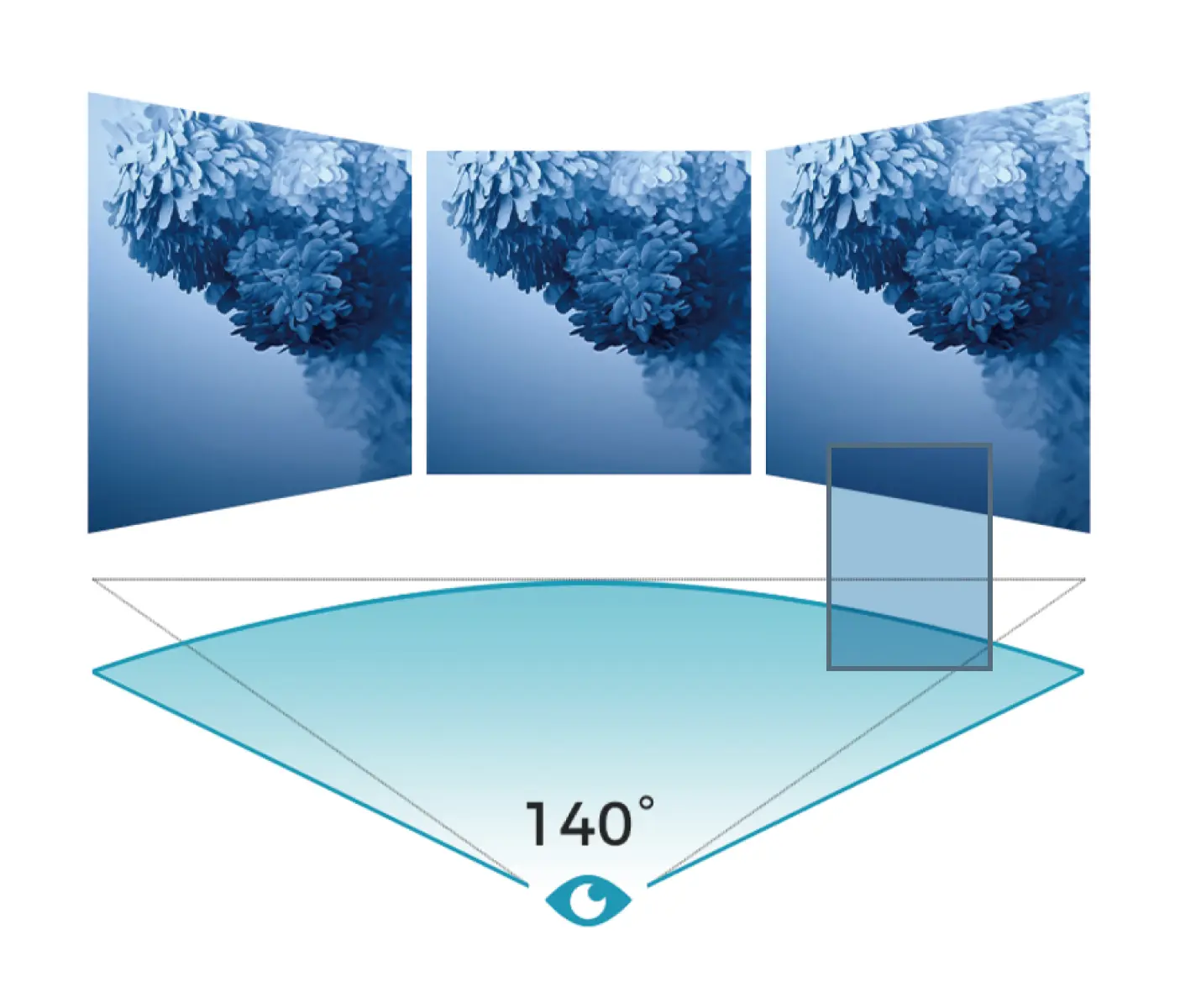

140° Ultra‑Wide Viewing Angle
- Uniform Brightness & True‑to‑Life Color: Engineered with an ultra‑wide 140° viewing angle, this stadium LED display ensures uniform brightness and true‑to‑life color fidelity from every seat in the venue.
- Eliminate Visual Distortion: By eliminating off‑axis color distortion and contrast loss, it delivers razor‑sharp match action and vivid sponsor commercials to fans in corner tiers, bleachers, and VIP suites alike.

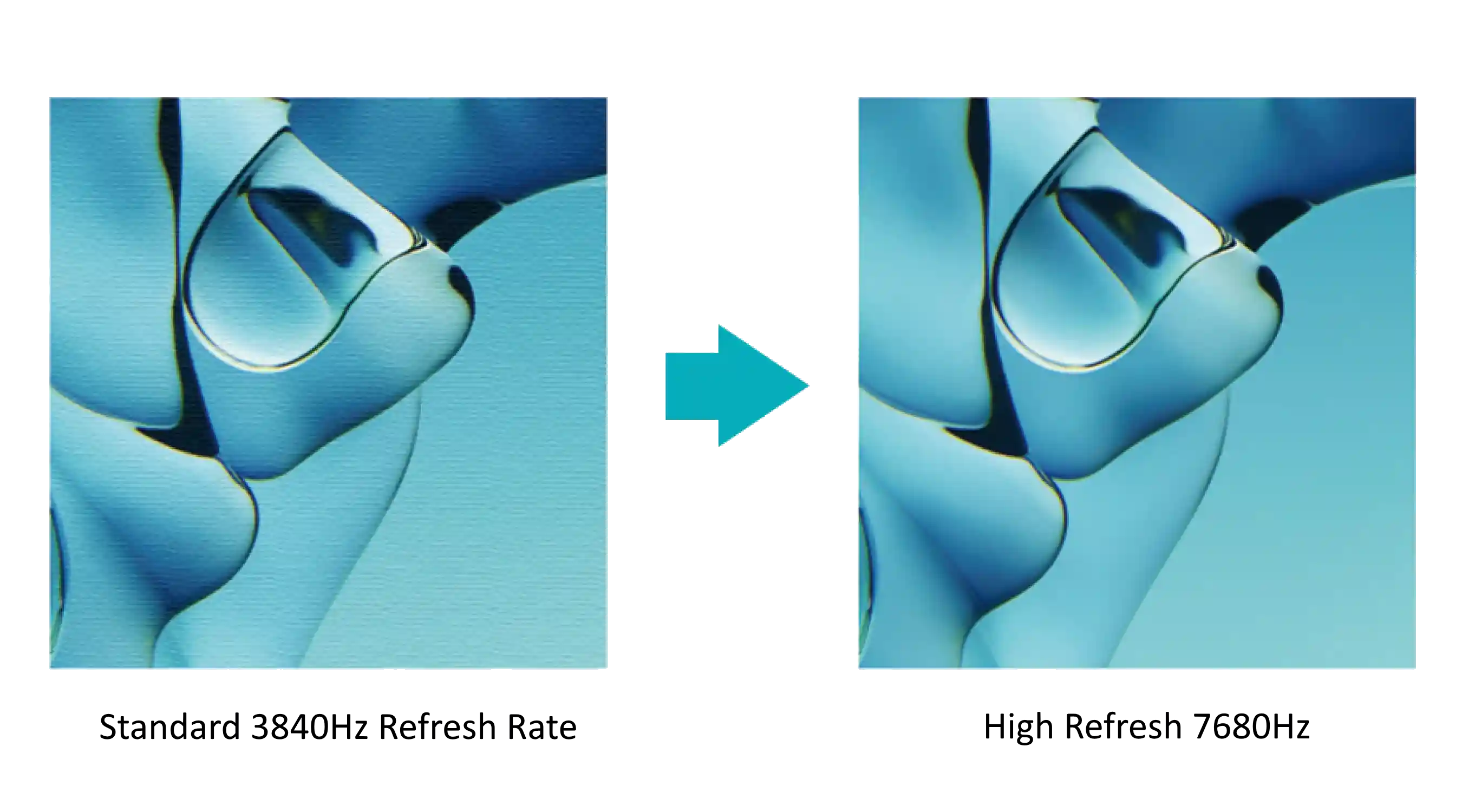

7680Hz High Refresh Rate Performance
Engineered for professional sports environments and high‑speed visual applications, the Perimeter LED Display features a 7680Hz high refresh rate to deliver ultra‑smooth images with reduced motion blur and flicker. It ensures clear, stable, and camera‑friendly visuals for live broadcasts, stadium events, and dynamic content playback.
Frequently Asked Questions
Thank you. We will contact you shortly.
Related Videos
Perimeter LED Display Performance in Heavy Rain
Mar 01, 2025
Perimeter LED Display Demonstration
Apr 02, 2026
Related Reading
Complete Buying Guide for Stadium Perimeter LED Displays: Specs, Selection, Installation, and Maintenance
Waterproof Performance Differences of Stadium Perimeter LED Displays
How to Select a Stadium Perimeter LED Screen
Weather Resistance Technical Advantages of Fixed LED Large Screens for Sports Venues
Fixed LED Large Screen Selection for Sports Venues: Refresh Rate, Brightness, Adjustable Angle, Multi-Viewing Angle
- Weather-Ready Stadium LED Display
- Lightweight & Easy Maintenance
- Sports Safety Protection
- Ultra-Wide Viewing Vision
- IP65 Weather Resistance
Specification
Product Specification
| Pixel Pitch | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Panel Size(mm) | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 |
| Panel Pixel | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Soft Mask | Support | Support | Support | Support | Support |
| Brightness | 6000 cd / ㎡ 8000 cd / ㎡(Optional) |
5500 cd / ㎡ 10000 cd / ㎡(Optional) |
5500 cd / ㎡ 10000 cd / ㎡(Optional) |
6500 cd / ㎡ 10000 cd / ㎡(Optional) |
7000 cd / ㎡ 10000 cd / ㎡(Optional) |
| Maintenance Method | Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
| Gray Scale | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color |
| Refresh Frequency | PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
| Input Power Frequency | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz |
| Input Voltage(AC) | 100-240 | 100-240 | 100-240 | 100-240 | 100-240 |
| Ingress Protection | IP65 | IP66 | IP66 | IP66 | IP66 |
| Max Power Consumption | 800Watt/㎡ (Standard One) |
800Watt/㎡ (Standard One) |
800Watt/㎡ (Standard One) |
800Watt/㎡ (Standard One) |
800Watt/㎡ (Standard One) |
| Average Power Consumption | 400Watt/㎡ (Standard One) |
400Watt/㎡ (Standard One) |
400Watt/㎡ (Standard One) |
400Watt/㎡ (Standard One) |
400Watt/㎡ (Standard One) |
| Panel Weight(Kgs) | 29 | 29 | 29 | 29 | 29 |
| Viewing Angle | Horizontal140 deg;Vertical 140 deg | ||||
| Operating environment | Temperature:-20℃ +60℃ Humidity:10%-90%RH | ||||
