Flexible LED Display
- Pixel Pitch: P1.9, P2.6, P2.9, P3.9
- Module Size(mm): 250mm × 250mm
- Cabinet Size(mm): 500mm × 500mm
- 90-Degree for Naked Eye 3D Effect: Yes
- Operating Temperature: −20℃～65℃
- Input Voltage(AC): AC110V～AC220V @ 50Hz / 60Hz
- Ingress Protection: IP43,IP65

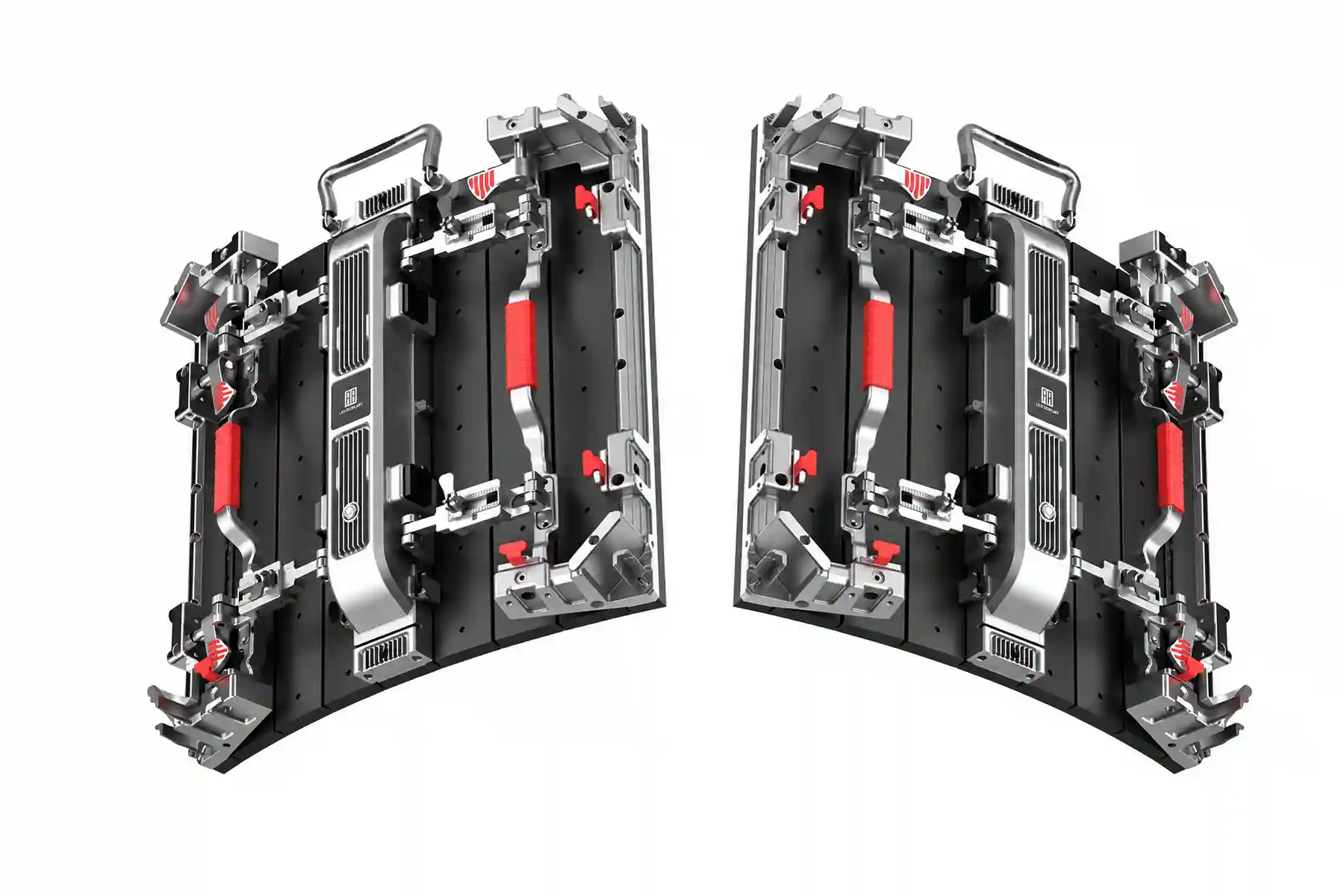

Flexible LED Display
RX500 Series- Flexible Modular Cabinet
- IP65 Protection (Outdoor Version)
- Multiple Pixel Pitch Options
- High Refresh Rate

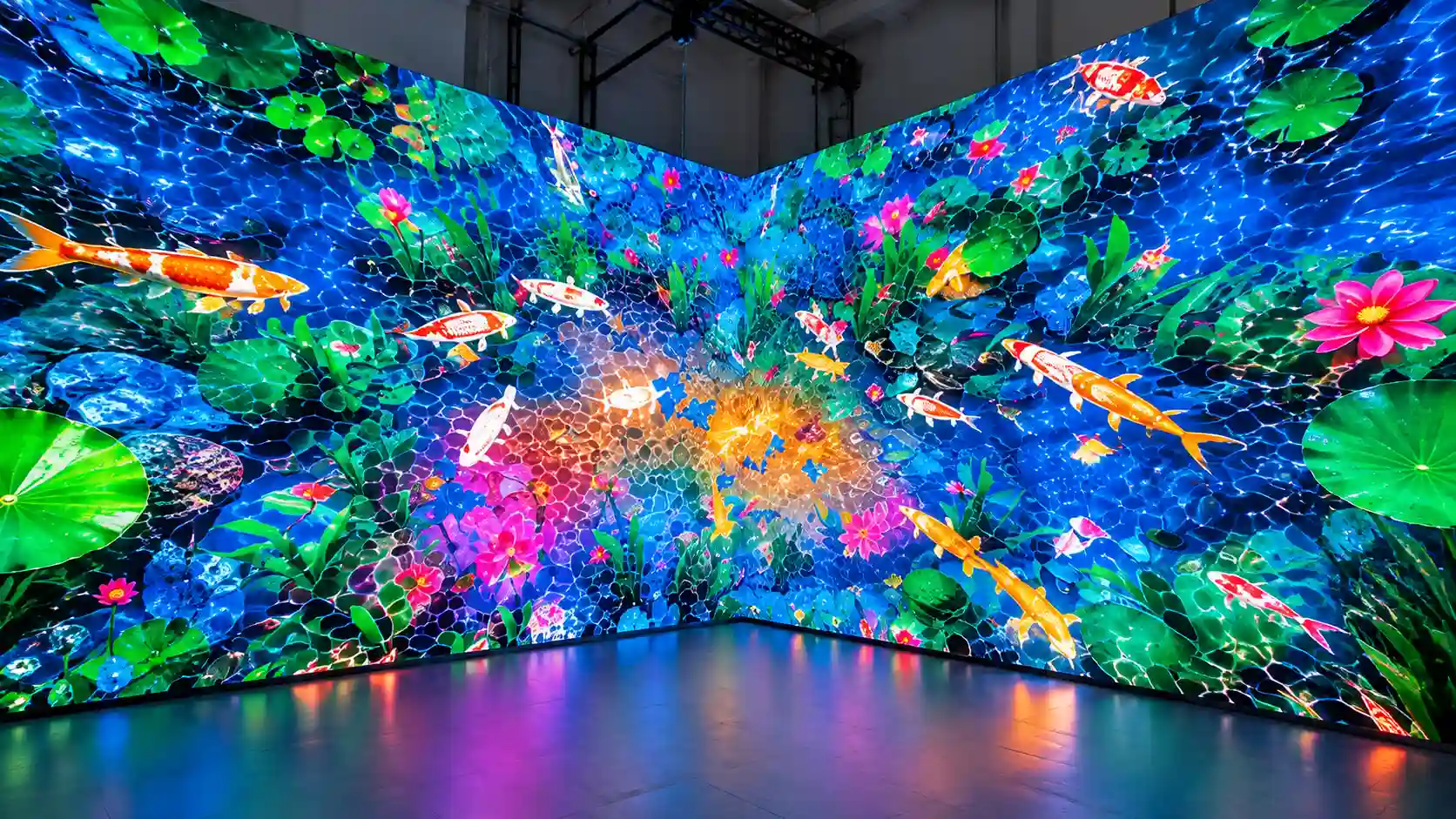

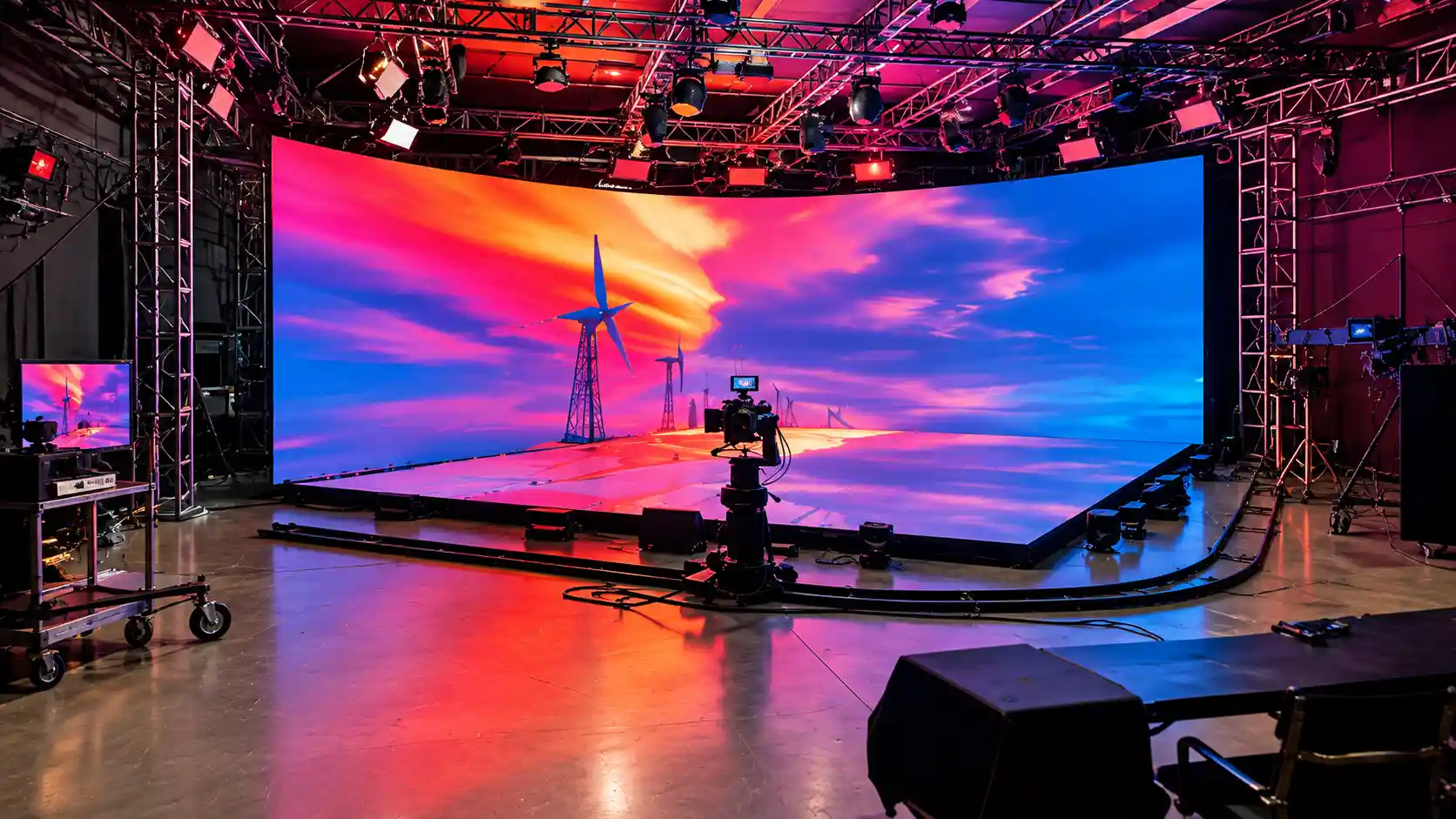

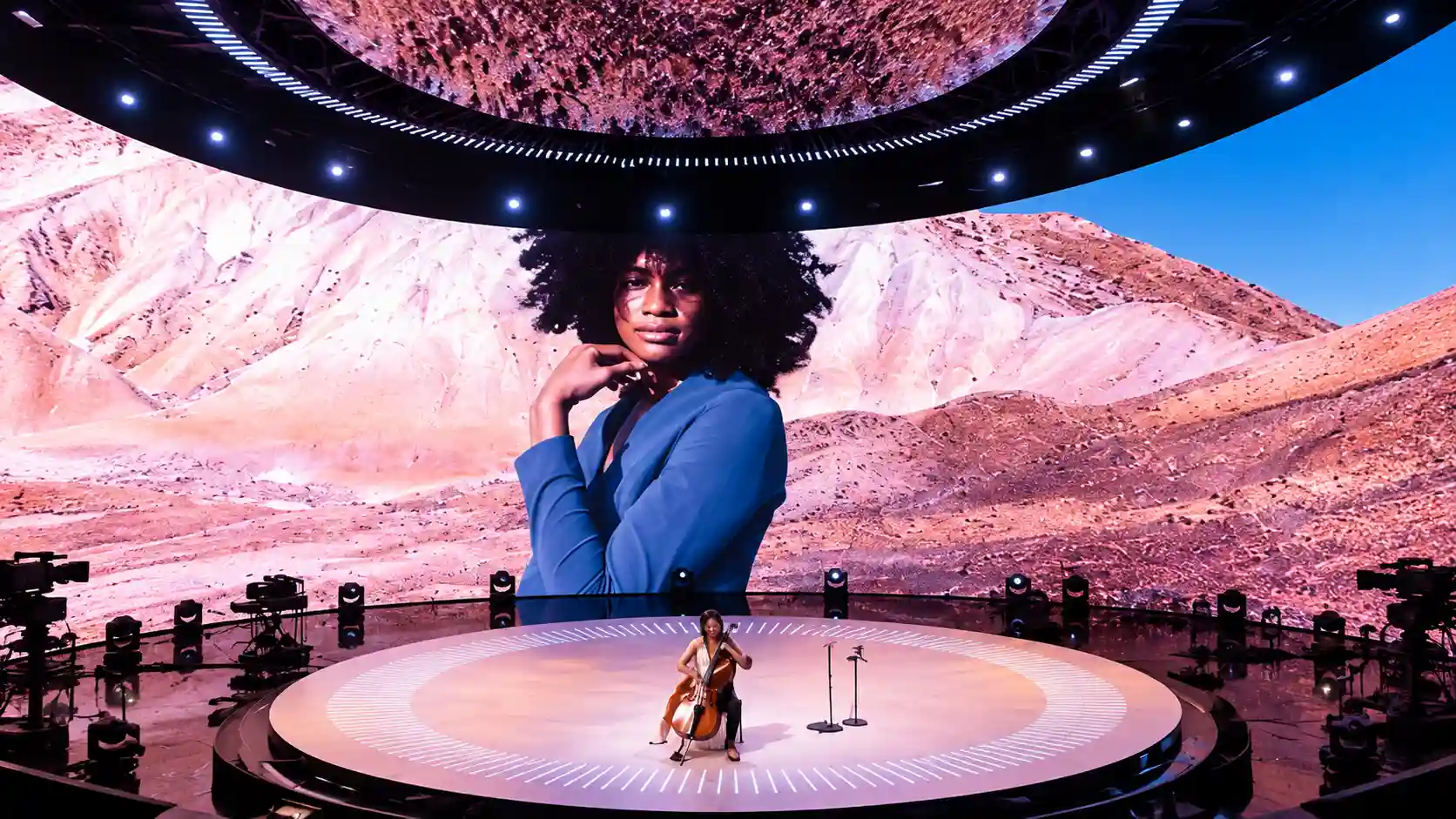

Customer Real Projects
Creative LED Displays
Main Product Features
Flexible Cabinet Design

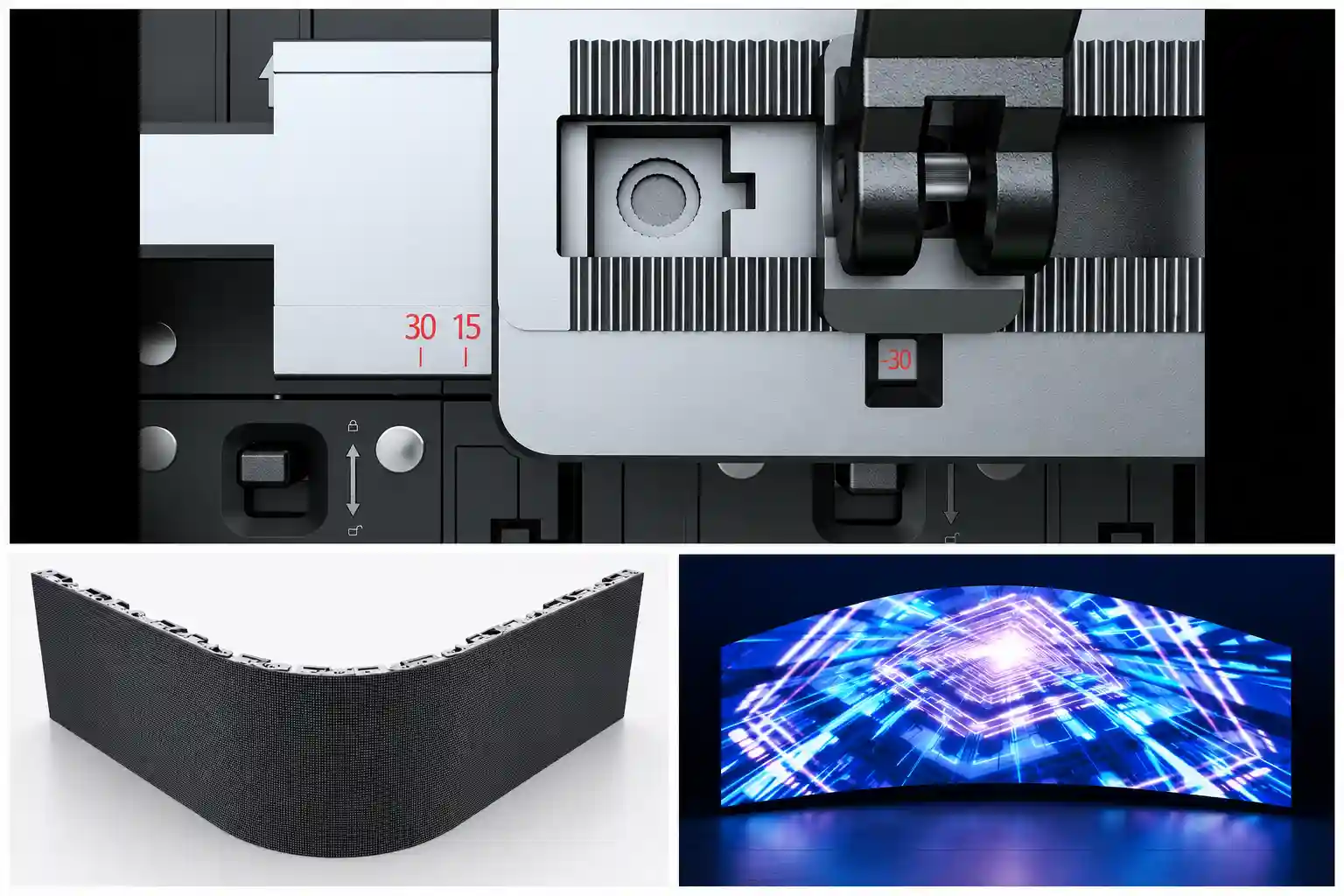

Adjustable Curved LED Display
Engineered for creative LED display applications, this flexible LED screen supports smooth concave and convex configurations for building arcs, cylinders, circles, and other customized shapes. A circular display can be created with as few as four cabinets, providing greater flexibility for stages, exhibitions, events, and immersive digital installations. The modular cabinet design also supports seamless connection with standard LED panels, making it easier to create large‑format screens while optimizing project costs.

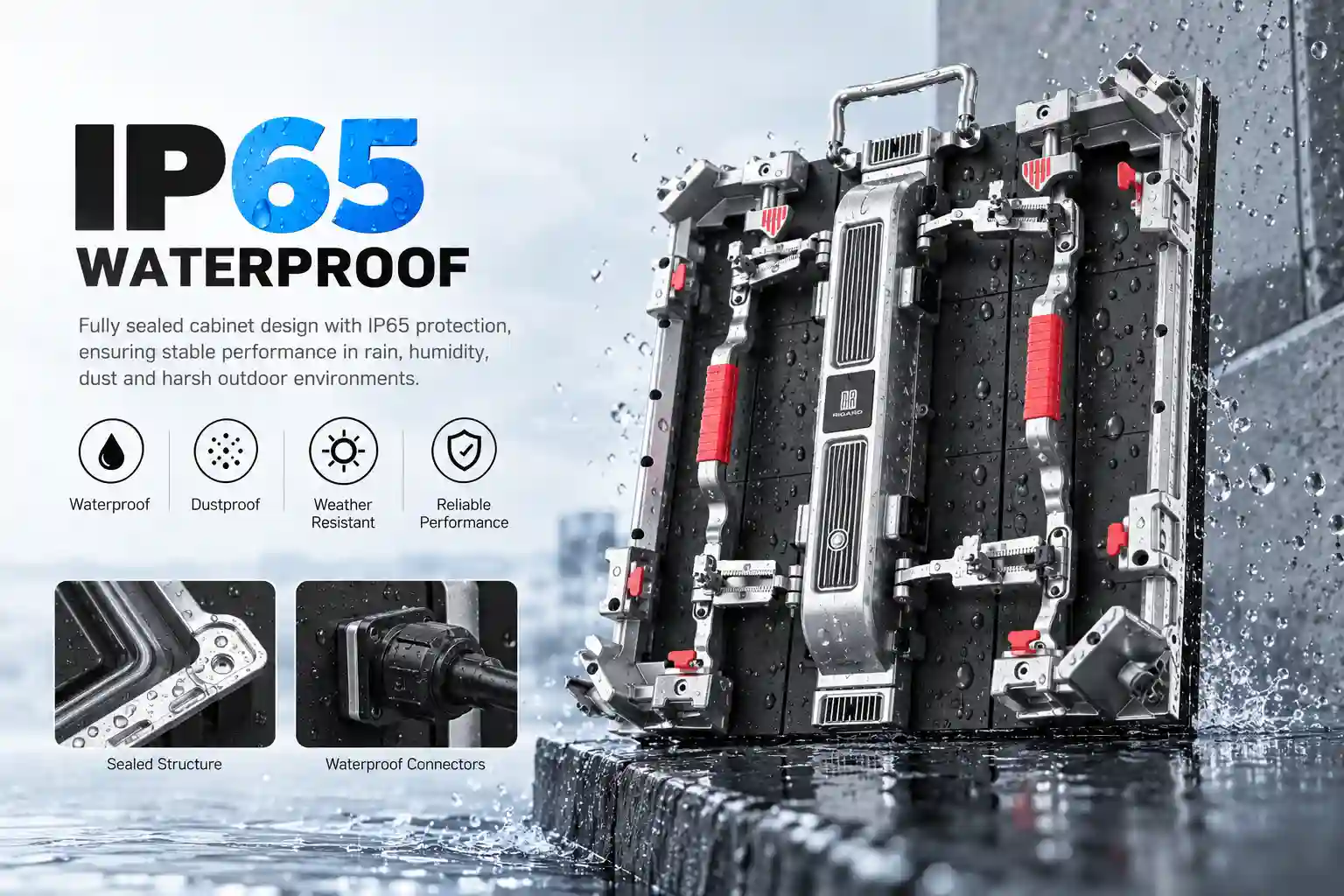

IP65 Weatherproof Protection
Engineered for demanding outdoor environments, this LED display features IP65‑rated protection with advanced waterproof sealing and potting technology. The modules, power boxes, and cable connections are effectively protected against rain, dust, and moisture, ensuring stable and reliable performance for outdoor events, stages, exhibitions, and large‑format LED display applications.

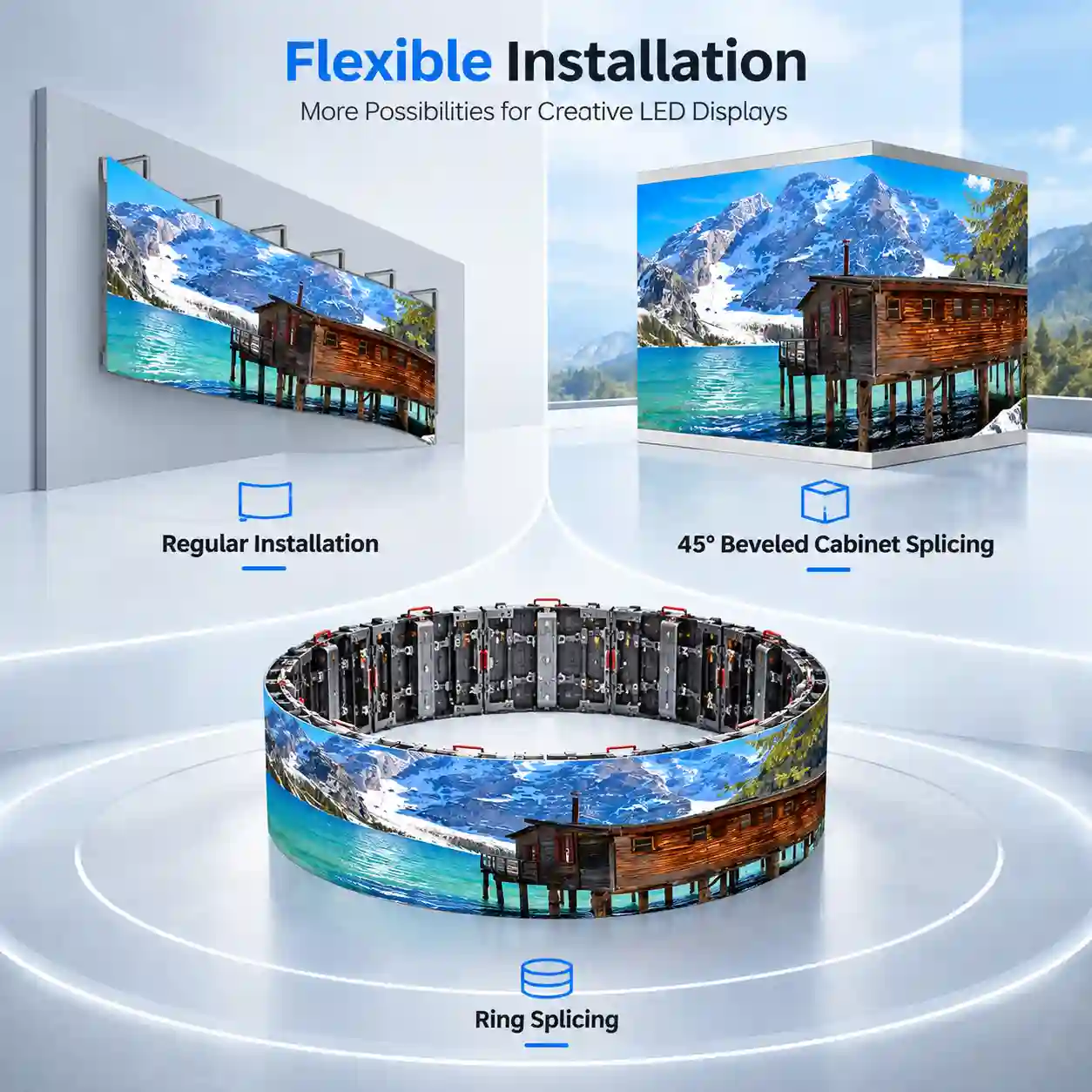

Versatile LED Display Splicing for Creative Installations
Designed for flexible and creative LED display applications, the modular cabinet supports regular installation, 45° beveled corner splicing, and circular ring configurations. This versatile structure makes it easy to create flat, curved, corner, and 360° LED screens for stages, exhibitions, events, commercial spaces, and immersive visual installations.

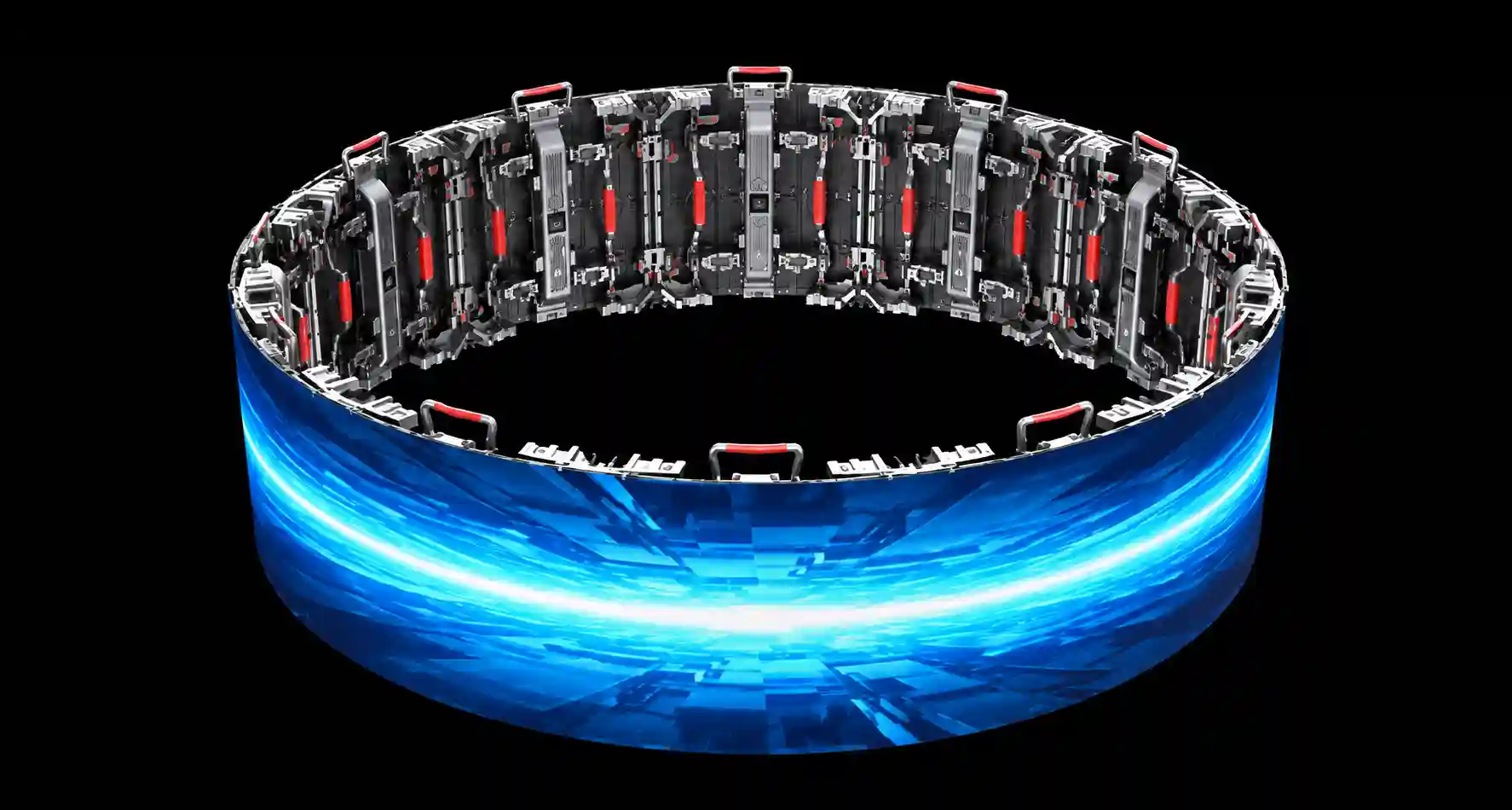

Ultra‑High Refresh Rate LED Display
Featuring a 3840Hz–7680Hz high refresh rate, this LED display delivers smooth, stable, and flicker‑free visuals even during fast‑moving content. Optimized for professional cameras and live recording, it helps minimize scan lines, flickering, and motion blur, making it ideal for stages, live events, broadcast environments, exhibitions, and high‑end commercial LED display applications.
High‑Brightness LED Display
With brightness levels of 5,000 cd/m², this high‑brightness LED display delivers vivid colors, sharp details, and excellent visibility even under strong direct sunlight. Designed for outdoor events, stages, exhibitions, and commercial LED display applications, it ensures clear and eye‑catching visual performance throughout the day.
Frequently Asked Questions
Product Specification
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm |
| LED Type | SMD1515 | SMD1515 | SMD1921 | SMD1921 |
| Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots |
| Driving Mode | 1/32scan | 1/32scan | 1/21scan | 1/16scan / 1/8scan |
| Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots |
| Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
| Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
| Minimum Diameter of the Circular Arc | 1.27m | 1.27m | 1.59m | 1.59m |
| Cabinet Resolution | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots | 128dots × 128dots |
| Pixel Density | 262,144dots/m² | 147,456dots/m² | 112,896dots/m² | 65,536dots/m² |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9m |
| Brightness | 800nits～1,200nits | 800nits～1,200nits | 3000nits (black led) 4500nits (white led) |
3000nits - 4000nits (black led) 4500nits - 5500nits (white led) |
| 90-Degree for Naked Eye 3D Effect | Yes | Yes | Yes | Yes |
| IP Grade | IP43 | IP43 | IP65 | IP65 |
| Refresh Rate | 3,840Hz - 7680Hz | 3,840Hz - 7680Hz | 3,840Hz - 7680Hz | 3,840Hz - 7680Hz |
| Gray Scale | 14bits～24bits | 14bits～24bits | 14bits～24bits | 14bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 560W/m² | 560W/m² | 720W/m² | 720W/m² |
| Average Power Consumption | 160W/m² | 160W/m² | 206W/m² | 206W/m² |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | −20℃～65℃ | −20℃～65℃ | −20℃～65℃ | −20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 6.5kg/panel | 6.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDM, SDI, DP | DVI, HDM, SDI, DP | DVI, HDM, SDI, DP | DVI, HDM, SDI, DP |
