Outdoor Transparent LED Screen
- Pixel Pitch: 7.81-12.5mm, 8.33-12.5mm, 15.625-15.625mm, 31.25-31.25mm
- Module Size(mm): 250*250mm
- Cabinet Size(W*H*D): 500*1000*60mm
- Refresh Rate: 1920-3840hz
- Cabinet Weight: 8.5KG/Pieces
- Working Voltage: 110-240Volt(50-60hz)
- Ingress Protection: IP68

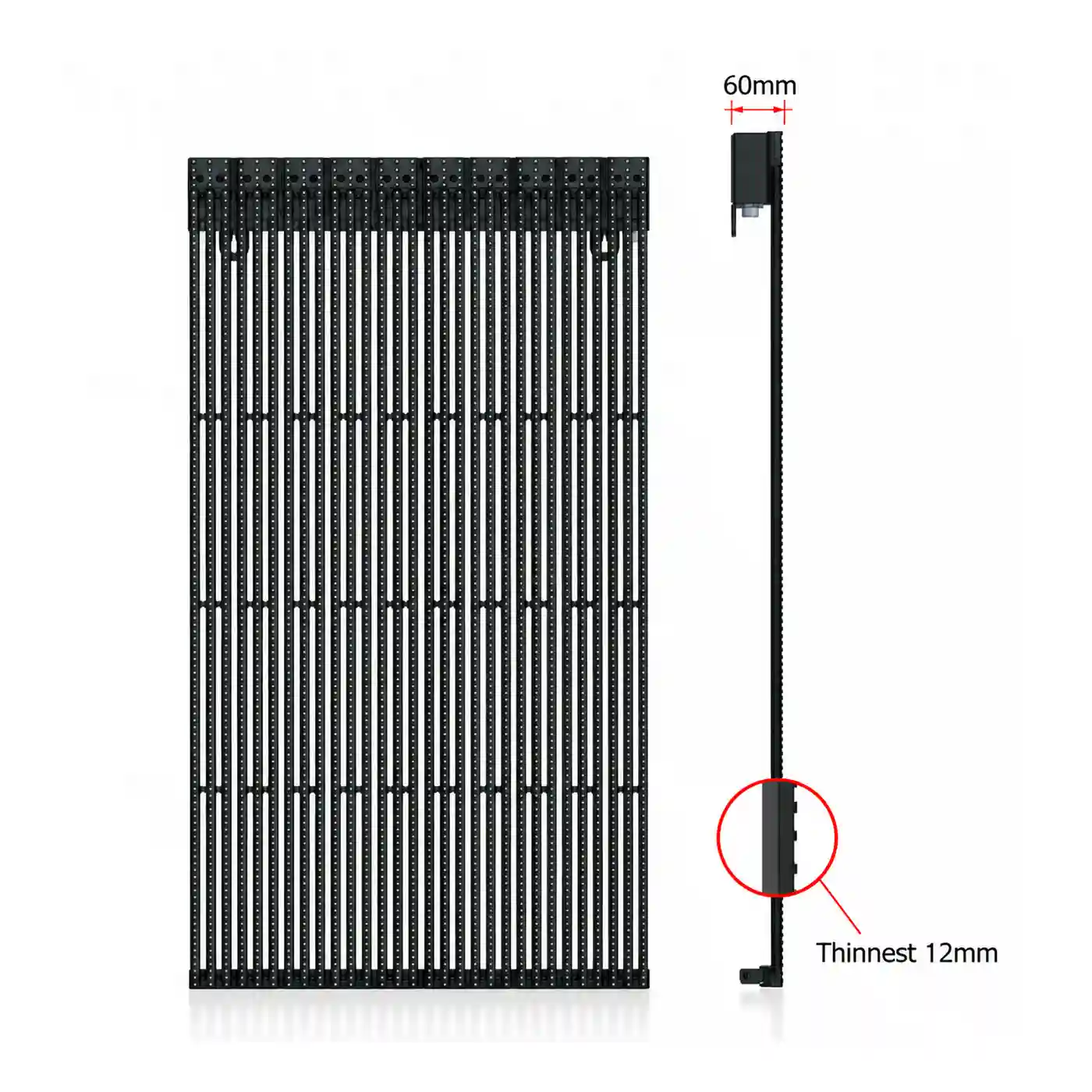

Outdoor Transparent LED Screen
TM1000 Series- Hollow Light‑Bar Structure
- Lightweight Aluminum Alloy Cabinet
- Flexible Customization
- Quick‑Lock Installation Mechanism

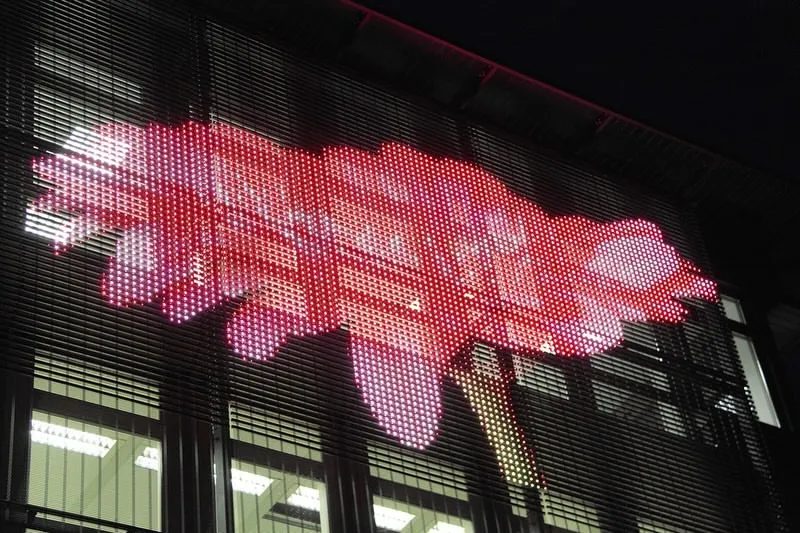

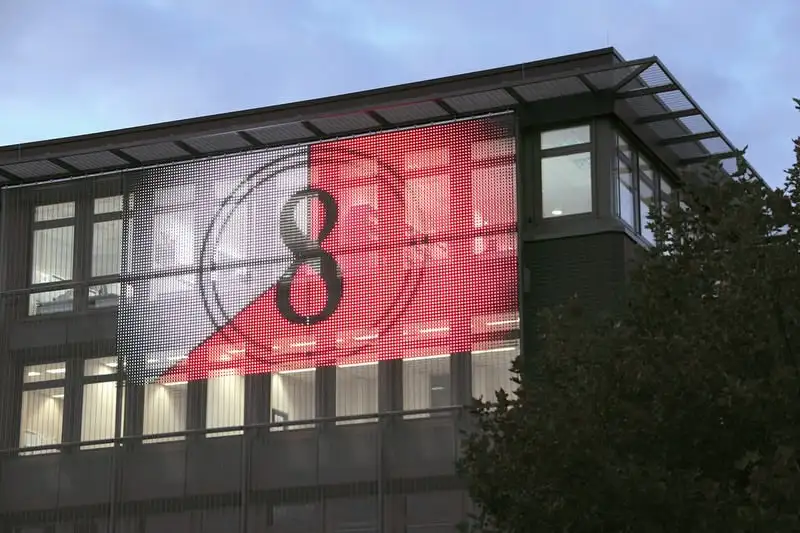

Customer Real Projects
Outdoor Transparent LED Display TM1000 Series Overview
Main Product Features
High‑Transparency Transparent LED Display

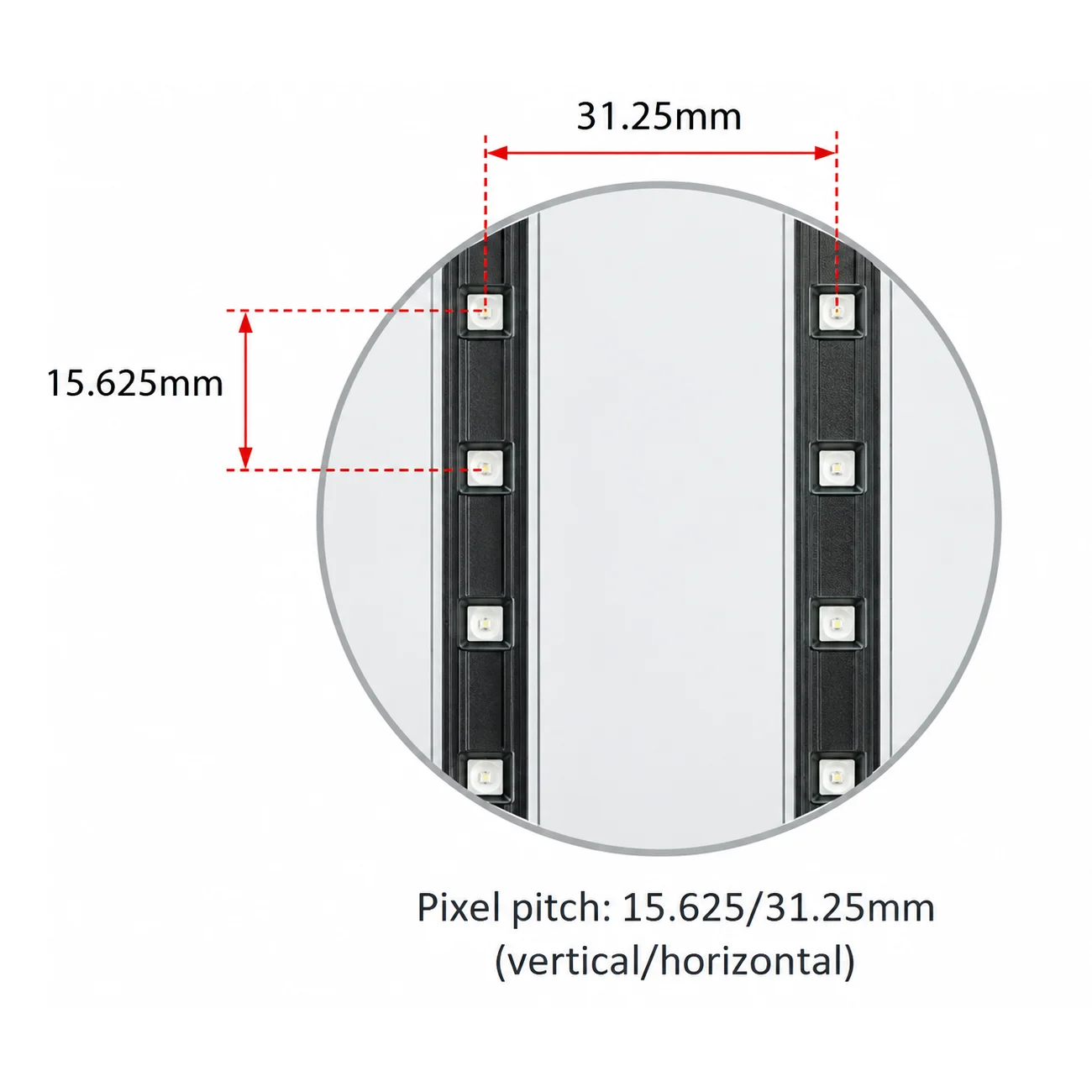

Optimized Pixel Pitch Outdoor Transparent LED Display
Designed with an optimized vertical and horizontal pixel structure, this outdoor transparent LED display delivers a strong balance between image clarity, transparency, and viewing distance. The standard configuration features a 15.625mm vertical and 31.25mm horizontal pixel pitch, while other pixel pitch options are also available according to screen size, viewing distance, and project requirements. Ideal for building facades, glass curtain walls, rooftops, and large‑scale outdoor advertising installations.

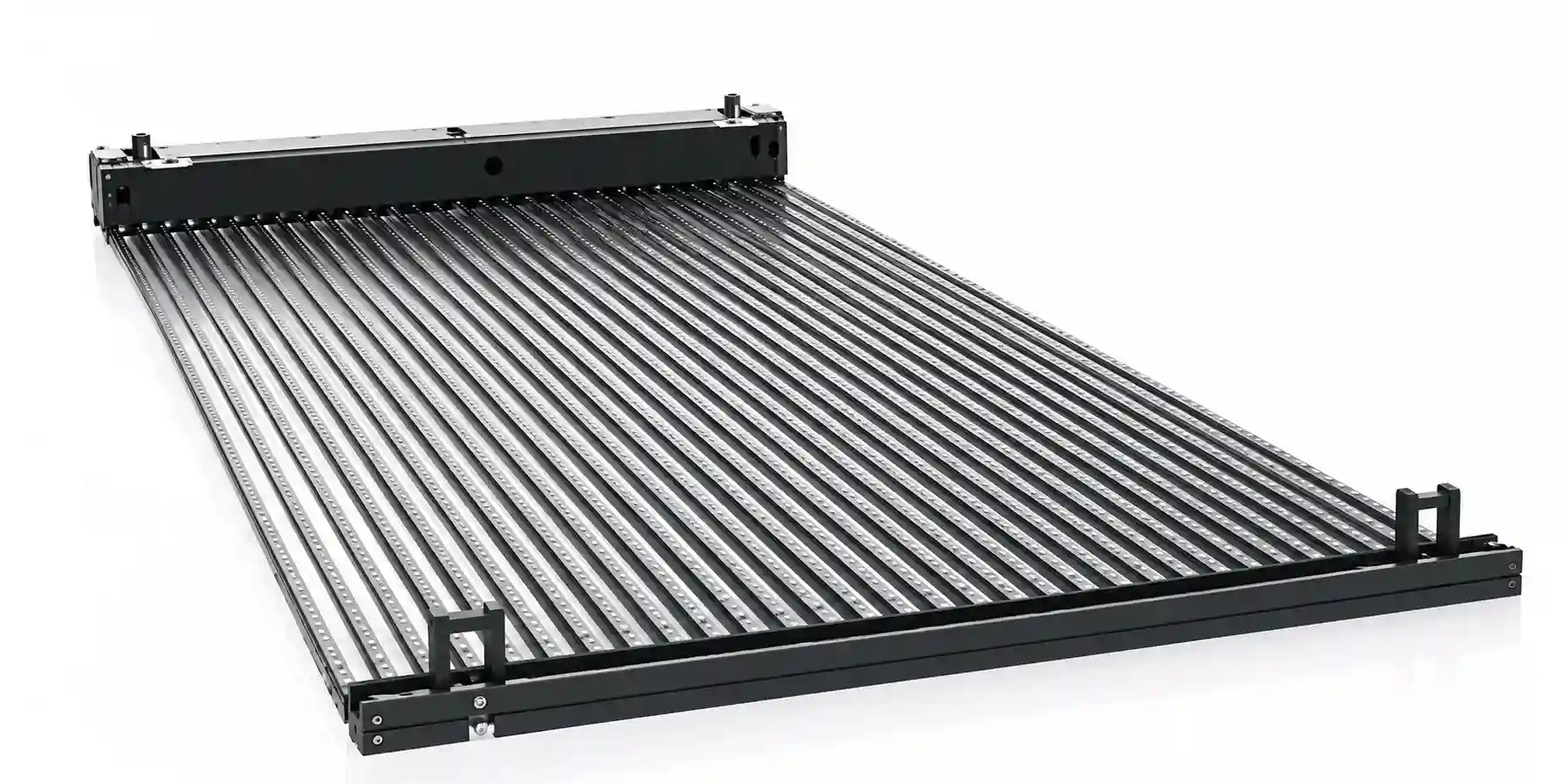

Slim & Lightweight Outdoor Transparent LED Display
Featuring an ultra‑slim and lightweight structure, this outdoor transparent LED display is 30%–60% lighter than traditional outdoor LED screens. The reduced weight minimizes the load on building structures while simplifying transportation and installation, helping lower overall installation costs. It is an ideal solution for glass curtain walls, building facades, rooftops, and large‑scale outdoor advertising projects.

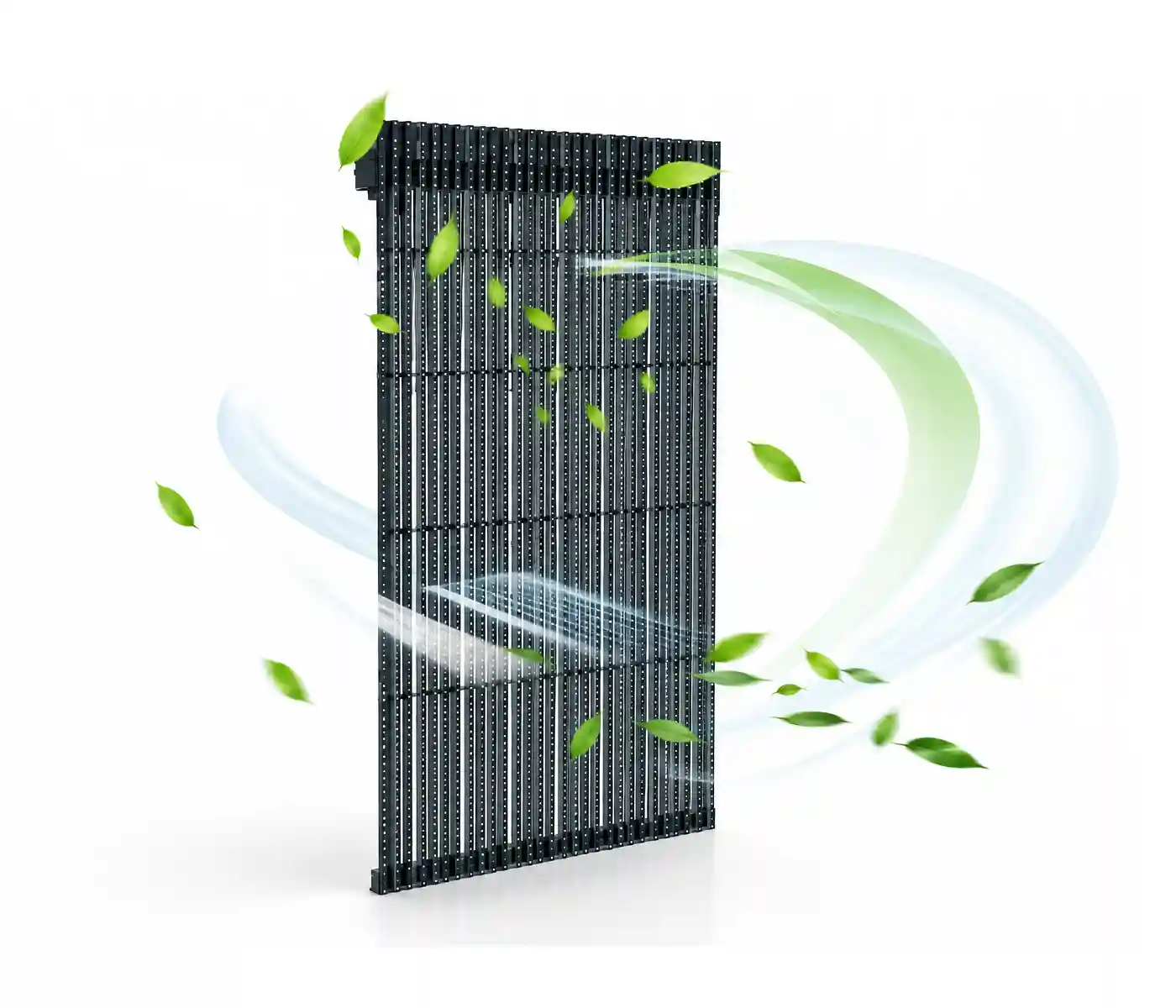

High‑Transparency Outdoor LED Display with Reduced Wind Load
Featuring an aluminum module back cover and a large‑area heat dissipation structure on the power box, this outdoor LED display efficiently transfers heat without additional cooling fans. The fanless thermal design improves cooling efficiency, reduces power consumption and noise, and ensures stable performance for long‑term outdoor LED advertising and digital billboard applications.

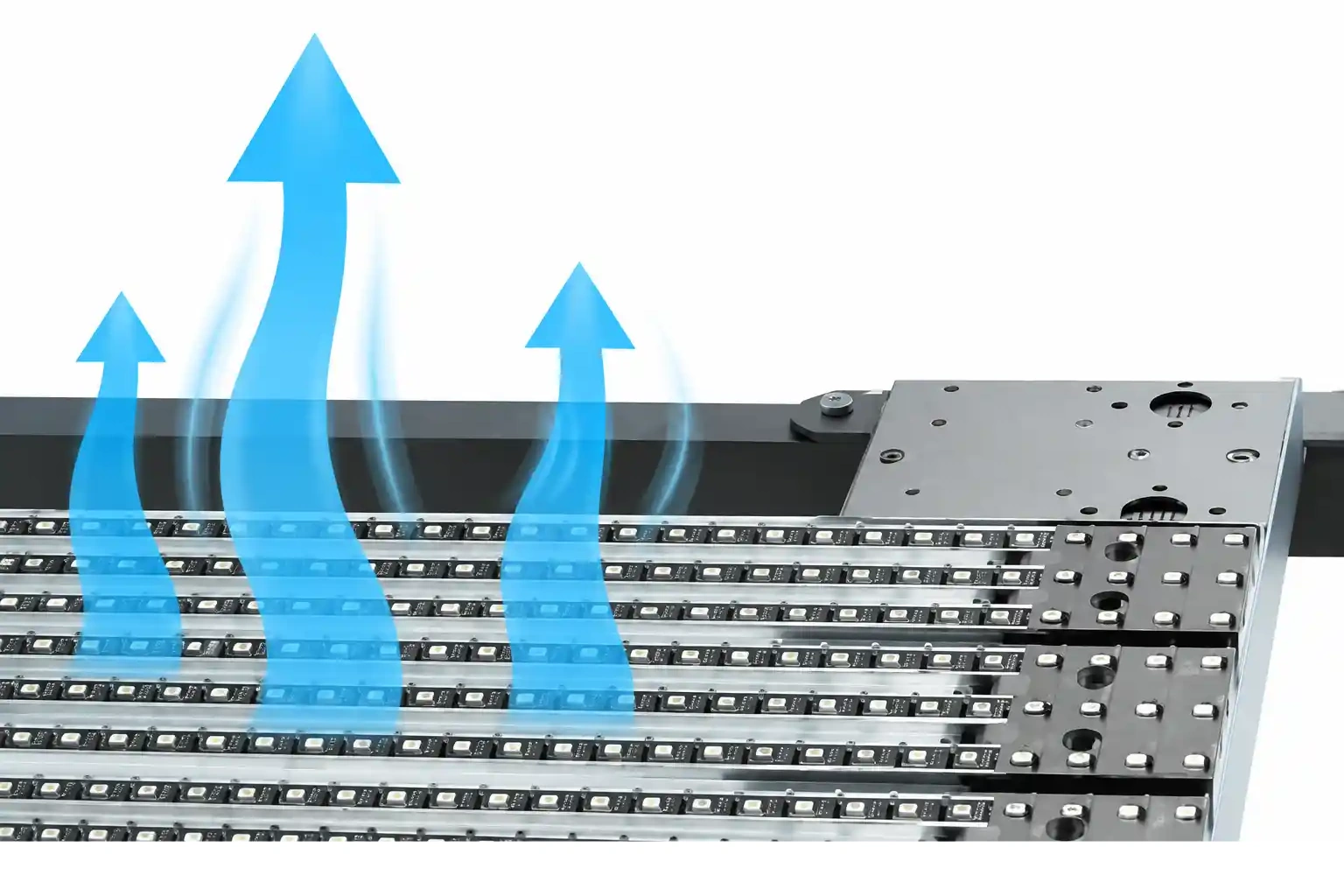

Efficient Heat Dissipation
Built with high‑quality aluminum materials and an optimized thermal design, the outdoor transparent LED display efficiently transfers heat away from the LED light bars. The separated driver and light‑bar structure further reduces heat concentration, improving operating stability and supporting reliable long‑term performance in demanding outdoor environments.

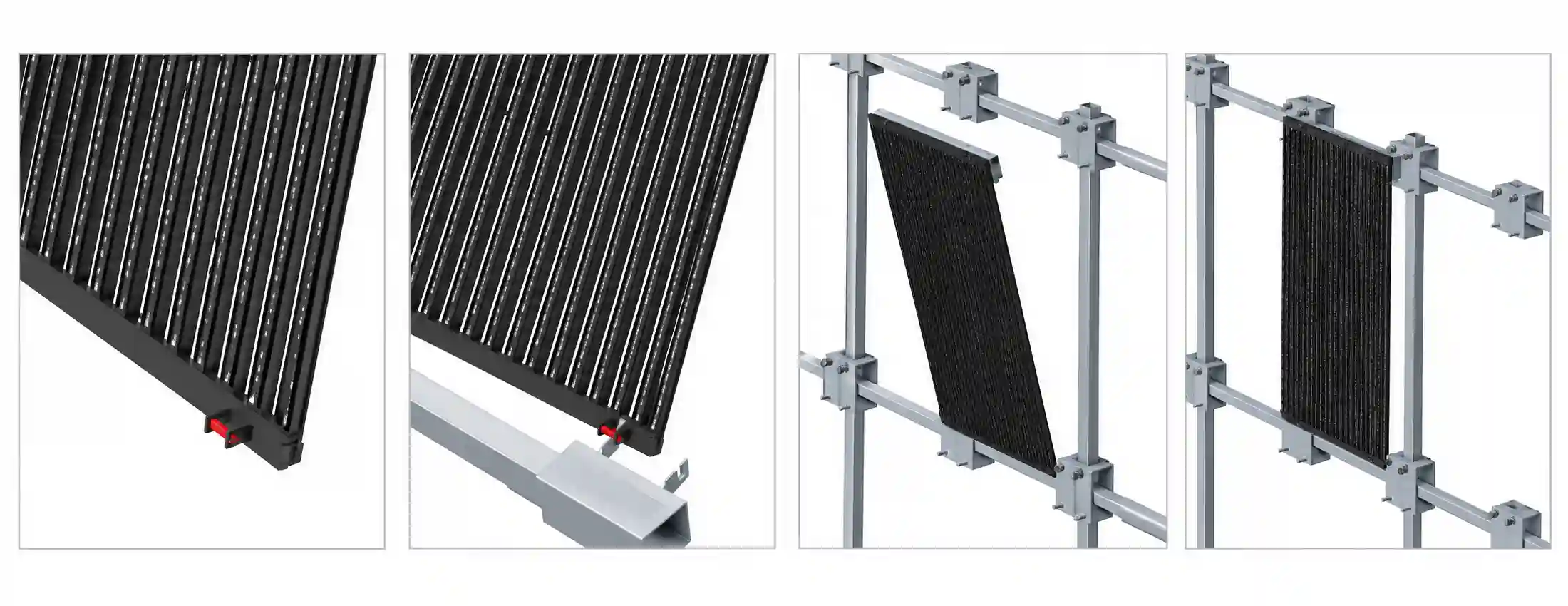

Tool‑Free Quick Installation
Designed with a fast‑lock mounting system, the outdoor transparent LED display cabinet can be installed or removed in as little as 10 seconds without special tools. The foolproof positioning design simplifies alignment and assembly, helping reduce installation time and labor costs for building facades, glass curtain walls, and large outdoor LED display projects.

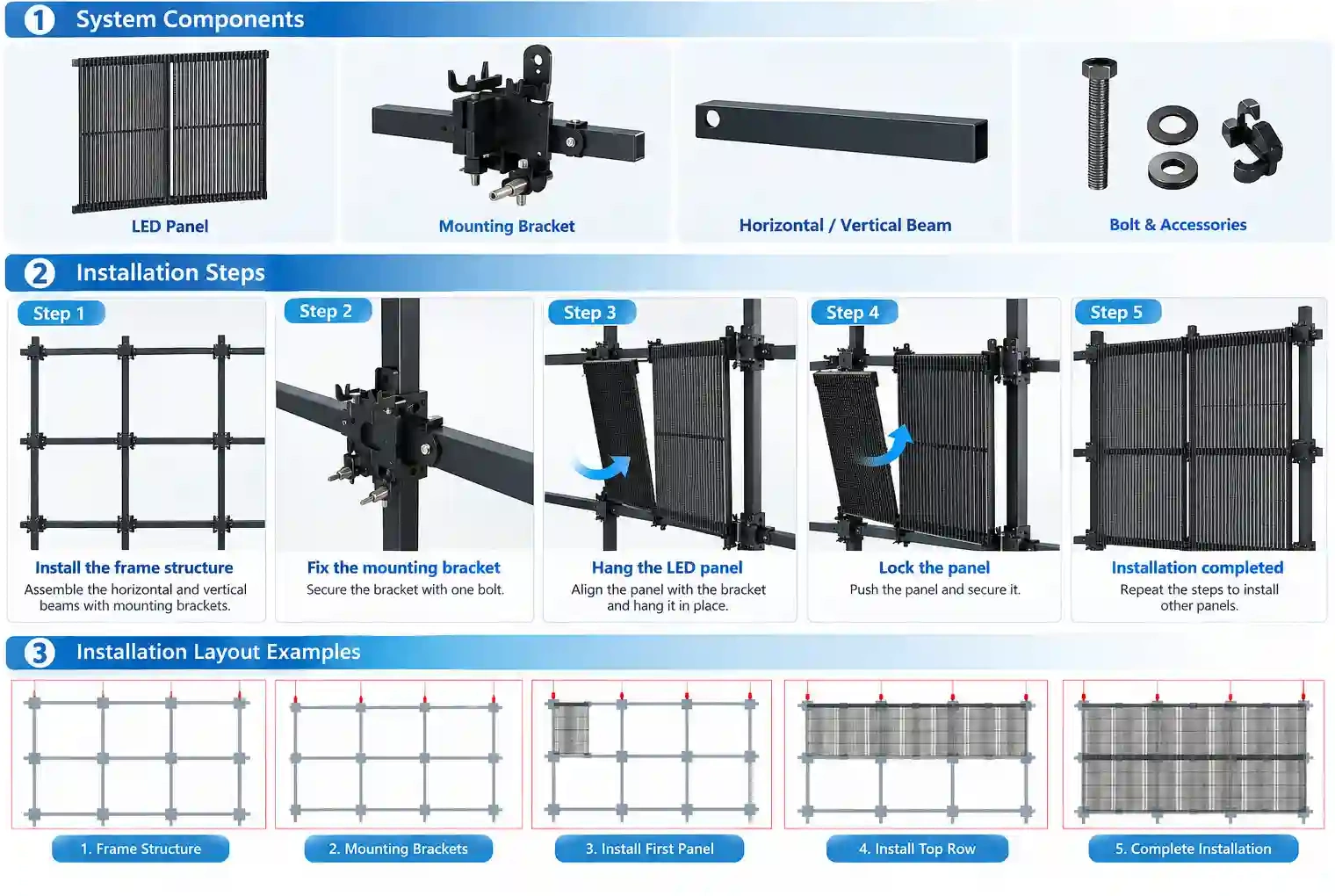

Installation Step
Frequently Asked Questions
- Dustproof, moisture-proof, rust-proof and corrosion-resistant.
- Ultra-high-definition image output with multiple pixel pitch options.
- A variety of flexible installation methods.
- Durable and reliable with long service life.
Product Specification
| Item | CS-7.81 | CS-P8.33 | CS-P15 | CS-P31 |
|---|---|---|---|---|
| Pixel Pitch | 7.81-12.5mm | 8.33-12.5mm | 15.625-15.625mm | 31.25-31.25mm |
| Led encapsulation | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Scan Mode | Static scan | Static scan | Static scan | Static scan |
| Pixel Per Sq.m | 10240 Pixel | 9600Pixel | 4096 Pixel | 1024 Pixel |
| Maintenance methods | Front & Rear Service | |||
| Cabinet Material | Aluminum | |||
| Module Size(W*H) | 250*250mm | |||
| Cabinet Size(W*H*D) | 500*1000*60mm | |||
| Refresh Rate | 1920hz | |||
| Color temperature | 10000K ±500（Adjustable） | |||
| Grey Scale | 14-16bits | |||
| Cabinet Weight | 8.5KG/Pieces | |||
| Brightness(Nits/m²) | 600nits-9000nits | |||
| Average Power Consumption | 150Watt/m² | |||
| Max Power Consumption | 450Watt/m² | |||
| IP Protection | IP68 | |||
| Operating Temperature | -30℃ to 50℃ | |||
| Working Voltage | 110-240Volt(50-60hz) | |||
